FISCHERSCOPE® X-RAY XULM®/XUL®
Entry-level model with focus on time saving.
Flexible measuring devices for coating thickness measurement of filigree parts like plugs, contacts, wires or smaller circuit boards as well as for the determination of the metal content of electroplating baths and the composition of simple alloy layers.
Key Benefits
- Good prospects.: Largest measurement window on the market
- Quick-measure design.: The sample is placed and ready for measurement in just a few steps
- Also for large samples.: Hood with C-slot allows large, flat samples
- Commissioning.: Extremely fast and simple
Description
Flexible measuring devices for coating thickness measurement of filigree parts like plugs, contacts, wires or smaller circuit boards as well as for the determination of the metal content of electroplating baths and the composition of simple alloy layers.
The FISCHERSCOPE® X-RAY XULM®/XUL® instruments are compact, versatile XRF measuring devices ideal for non-destructive coating thickness measurement and material analysis. With the integrated proportional counter tube detector they allow fast measurements especially with large measuring distances and complex shaped samples, even with small measuring spots. These and numerous other functions make these devices indispensable tools in the areas of quality assurance, incoming goods inspection and production monitoring, especially in electroplating.
Largest measurement window on the market
The sample is placed and ready for measurement in just a few steps
Hood with C-slot allows large, flat samples
Extremely fast and simple
Optimal cost-benefit ratio
Even with large-area samples, measuring points are possible over the entire sample area
Microfocus X-ray tube
Individual measurements
Fixed or 3-fold changeable filters
Smallest measuring spot approx. Ø 0.1 mm
Proportional counter tube detector for short measuring times
Live image of the measuring point

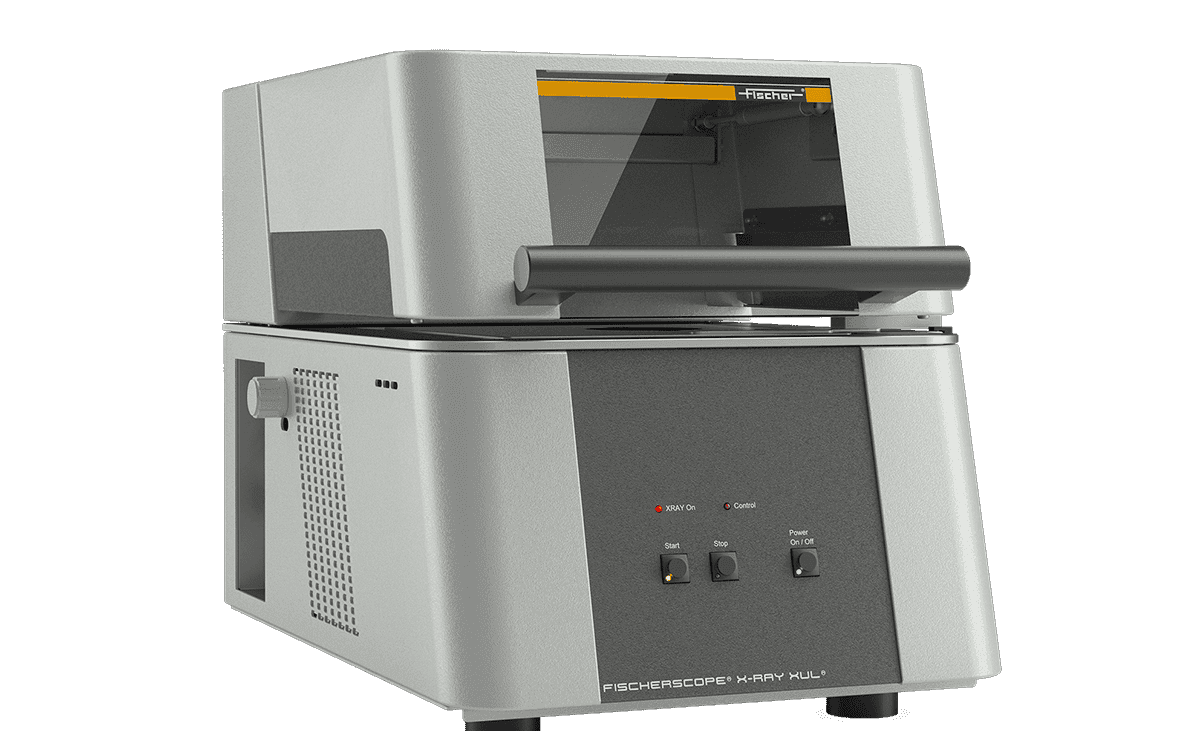

Up to 170 mm possible height of samples
Fixed or 4-fold changeable apertures
Type approved full protection device
Do you have further applications? Then contact us!
Features
- Microfocus X-ray tube
- Individual measurements
- Fixed or 3-fold changeable filters
- Smallest measuring spot approx. Ø 0.1 mm
- Proportional counter tube detector for short measuring times
- Live image of the measuring point
- Up to 170 mm possible height of samples
- Fixed or 4-fold changeable apertures
- Type approved full protection device
- PC-detector with largest measuring window on the market
- Smallest measuring spot with 0,1 mm
- Fix or 4-fold exchangeable apertures Fix or 3-fold changeable filters
- Electroplating such as zinc on iron or zinc-nickel on iron as corrosion protection of mass-produced parts (nuts and bolts)
- Determination of the metal content of electroplating baths
- Decorative coatings Cr/Ni/Cu/ABS
- Coatings of connectors and contacts in the electronics industry
- Manual measuring of PCBs
- Measuring in the watch and jewelry industry
