FISCHERSCOPE® X-RAY XDL®
Your entry into automated measuring.
Robust XRF measuring device for quality control of electroplated bulk parts and for bath analysis.
Key Benefits
- Also for large samples.: Hood with C-slot
- Built to last.: Robust design for measurement on mass-produced parts
- Testing of multiple measuring points.: Even with large samples, measuring points are possible on the entire sample surface
- Commissioning.: Extremely fast and simple
Description
Robust XRF measuring device for quality control of electroplated bulk parts and for bath analysis.
The instruments of the FISCHERSCOPE® X-RAY XDL® series are predestined for measurements in quality assurance, incoming inspection and production monitoring. They are closely related to the XULM® series, with one significant difference: the measuring direction from top down! This means convenient analysis of uneven samples for you as well as the possibility of automated measuring.
Hood with C-slot
Robust design for measurement on mass-produced parts
Even with large samples, measuring points are possible on the entire sample surface
Extremely fast and simple

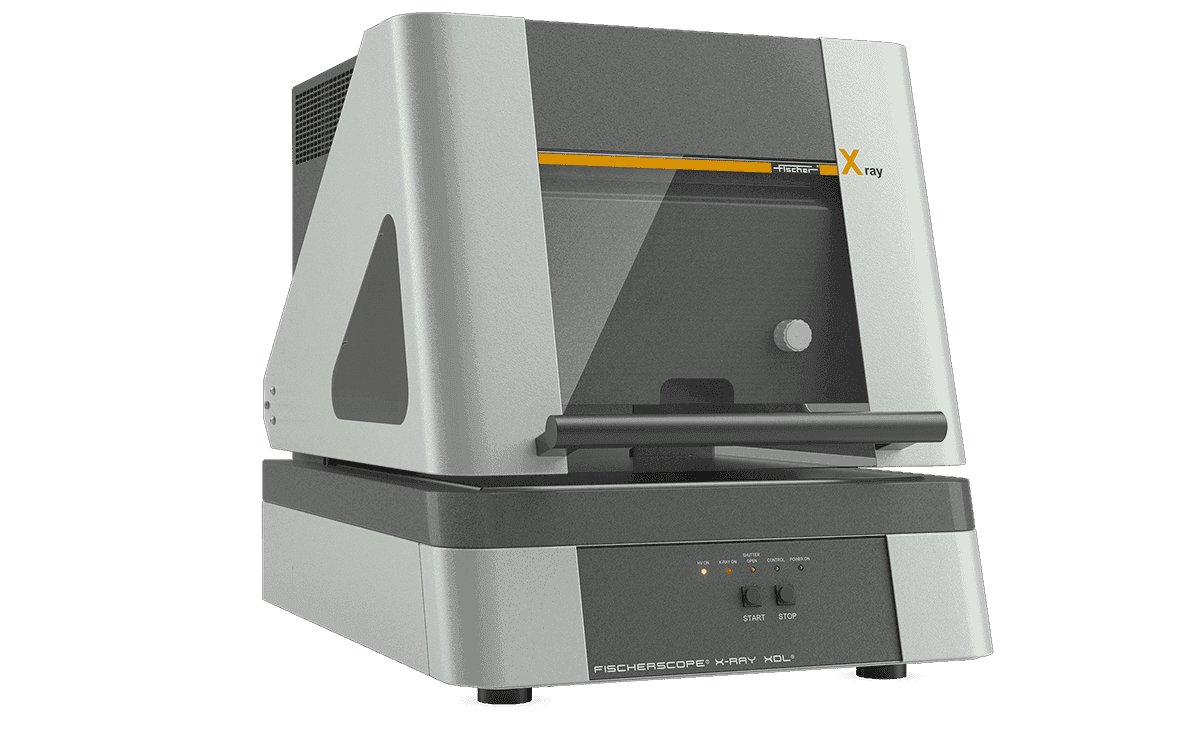

Different models offer the optimal solution for your application

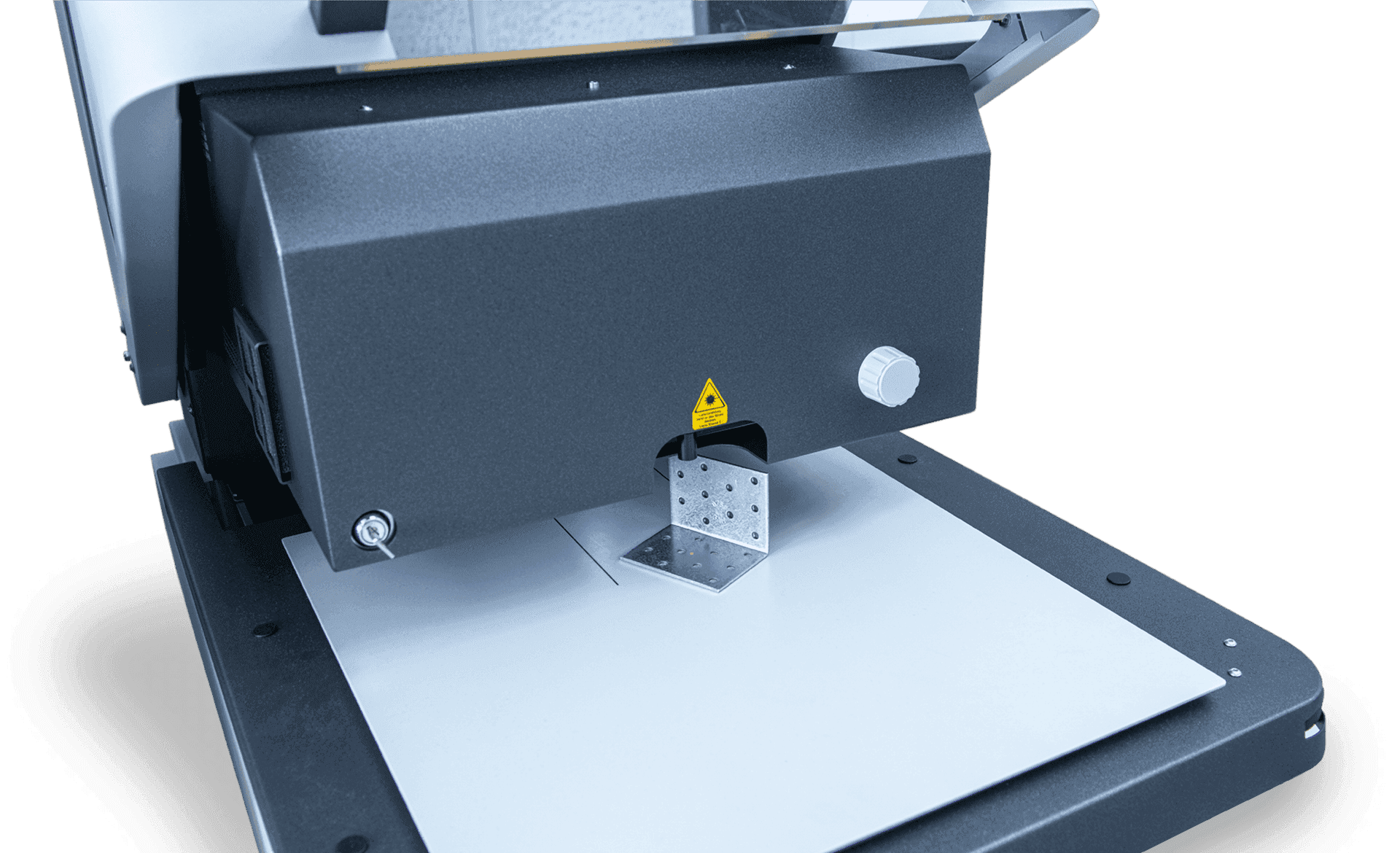

The sample is placed and ready for measurement in just a few steps
Standard X-ray tube
Apertures: fixed Primary filters: fixed
Up to 140 mm possible height of samples
Smallest measuring spot approx.: Ø 0.2 mm
Determination of the metal content in electroplating baths with corresponding accessories
Type approved full protection device
Proportional counter tube detector for short measuring times
Do you have further applications? Then contact us!
Features
- Standard X-ray tube
- Apertures: fixed Primary filters: fixed
- Up to 140 mm possible height of samples
- Smallest measuring spot approx.: Ø 0.2 mm
- Determination of the metal content in electroplating baths with corresponding accessories
- Type approved full protection device
- Proportional counter tube detector for short measuring times
- Adjustment of the measuring distance through patented DCM method
- Type approved full protection device
- PC-detector with largest measuring window on the market
- Electroplated coatings such as zinc on iron as corrosion protection
- Serial testing of mass-produced parts
- Decorative chromium coatings, e. g. Cr/Ni/Cu/ABS
- All typical chromium coatings, such as Cr(VI) and new ones like Cr(III)
- Measuring of functional gold coatings on PCBs such as Au/Ni/Cu/PCB
- Coatings of connectors and contacts in the electronics industry such as Au/Ni/Cu and Sn/Ni/Cu
- Determination of the metal content of electroplating baths
