FISCHERSCOPE® X-RAY XDLM®-PCB
The entry-level series for PCBs.
Universal entry-level instrument for simple measurements of components and small structures on PCBs.
Key Benefits
- Commissioning.: Extremely fast and simple
- PCB experts.: Specialized measuring solutions for printed circuit boards
- Programmable.: Automated measurements on predefined structures thanks to advanced pattern recognition technology
- Balanced.: Optimal cost-benefit ratio
Description
Universal entry-level instrument for simple measurements of components and small structures on PCBs.
The universal entry-level instrument with a proportional counter tube detector for short measuring times is ideal for simple measurements and spot checks with a small measuring spot. Equipped with different apertures and filters, the FISCHERSCOPE® X-RAY XDLM®-PCB creates the optimal conditions for your measuring task.
Extremely fast and simple
Specialized measuring solutions for printed circuit boards

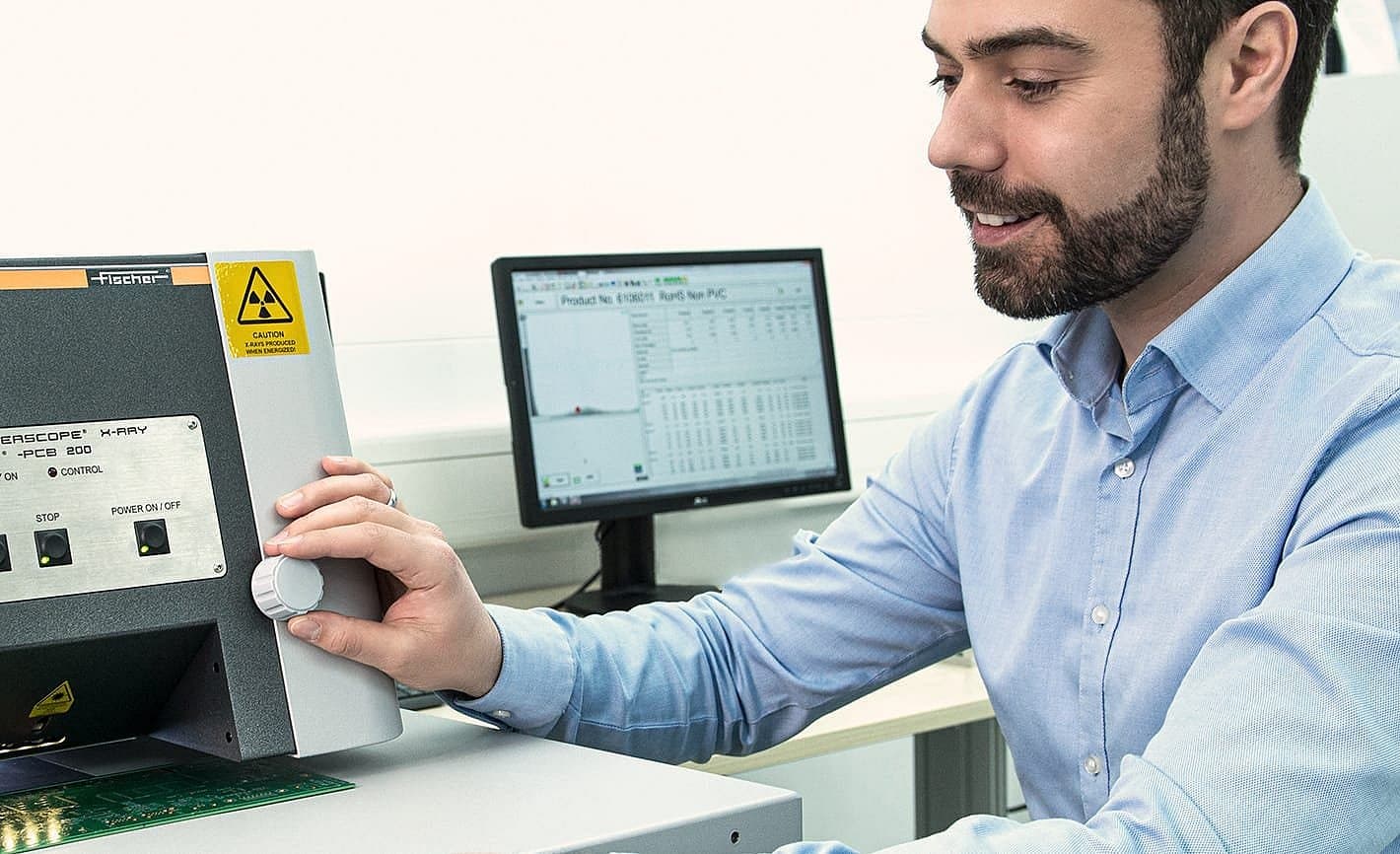

Automated measurements on predefined structures thanks to advanced pattern recognition technology
Optimal cost-benefit ratio
Different models offer the optimal solution for your application
The sample is placed and ready for measurement in just a few steps
Microfocus tube with tungsten anode
Proportional counter tube detector for short measuring times and a small measuring spot

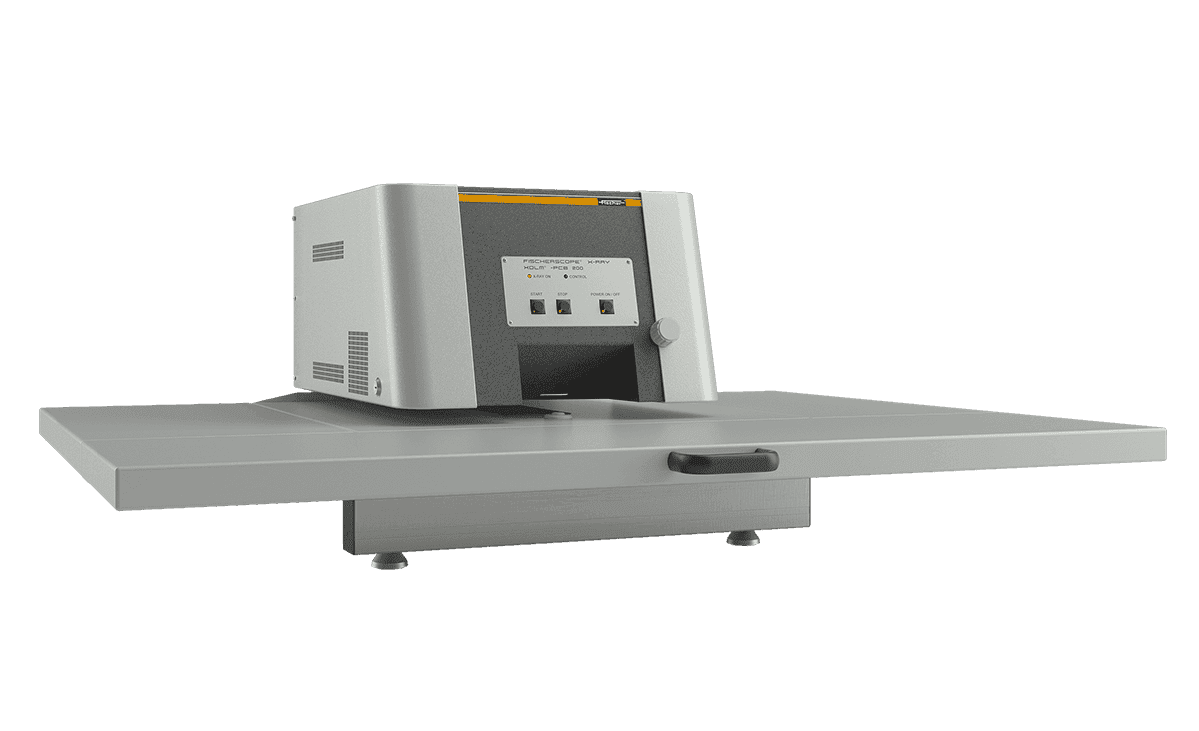

Fixed, wide measuring table for PCBs up to 610 × 610 mm, optionally with measuring table extension
Fixed aperture, optionally 4-fold changeable
Measuring spot approx.: Ø 0.2 mm
Up to 5 mm possible height of samples
Fixed filter, optionally 3-fold changeable
Measuring direction from above
Do you have further applications? Then contact us!
Features
- Microfocus tube with tungsten anode
- Proportional counter tube detector for short measuring times and a small measuring spot
- Fixed, wide measuring table for PCBs up to 610 × 610 mm, optionally with measuring table extension
- Fixed aperture, optionally 4-fold changeable
- Measuring spot approx.: Ø 0.2 mm
- Up to 5 mm possible height of samples
- Fixed filter, optionally 3-fold changeable
- Measuring direction from above
- Smallest measuring spot approx. Ø 0.2 µm
- Extra large measuring table
- PC-detector with largest measuring window on the market
- Measuring on smallest components and structures on PCBs up to 610 x 610 mm (24 x 24 in)
- Measuring functional layers in the electronics and semiconductor industry
- XDLM®-PCB 210 and 220: Automated measuring e.g. in quality control
