FISCHERSCOPE® X-RAY XAN® 500
The specialist for field use.
Mobile and universal handheld device for precise coating thickness measurement and material analysis – even with difficult material combinations.
Key Benefits
- Two in one.: Mobile, universal instrument for coating thickness measurement and material analysis in laboratory quality
- Mobile use.: Can be used flexibly indoors and outdoors

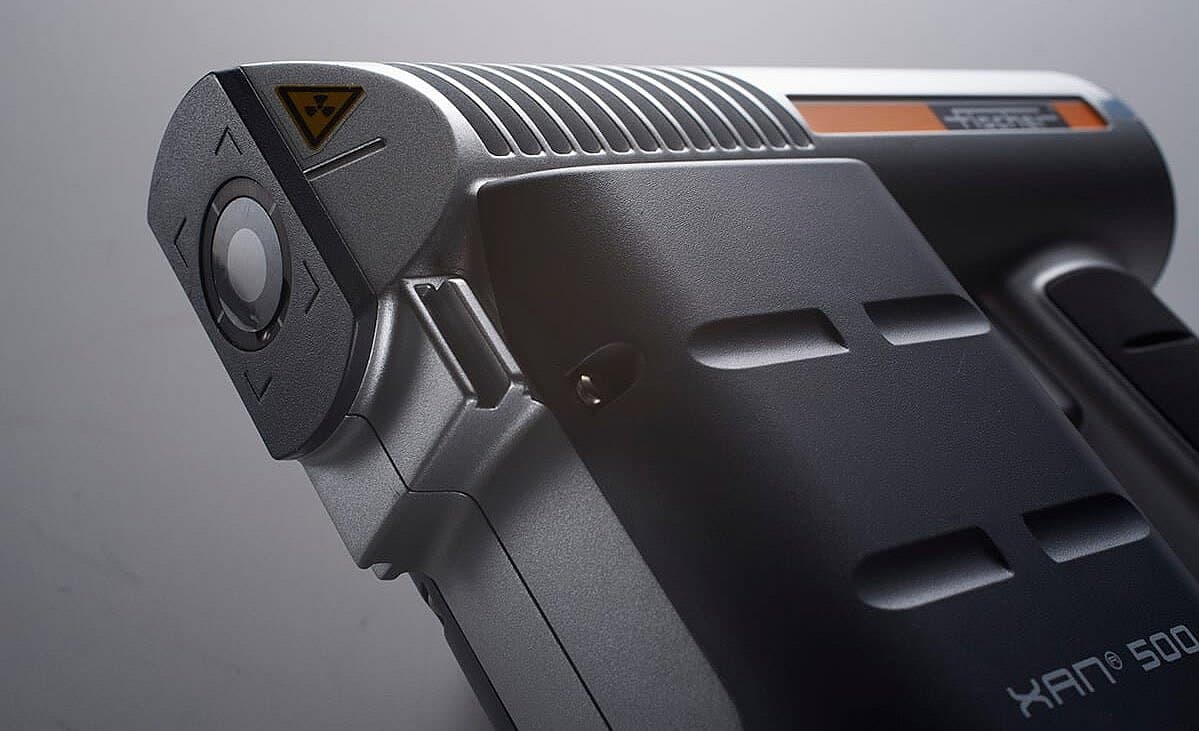

- Precise and exact.: Three-point support and geometry enable secure contact with the sample
- Full flexibility.: Variable measuring direction for measuring bulky objects or even small parts
Description
Mobile and universal handheld XRF analyzer for precise coating thickness measurement and material analysis - even with difficult material combinations.
The FISCHERSCOPE® X-RAY XAN® 500 is the most precise handheld XRF analyzer on the market. The device’s 3-point support ensures that the instrument is always placed correctly and kept stable during measuring, allowing for repeatable measurement results. The high-quality silicon drift detector (SDD) guarantees the necessary precision for analyzing multilayer coatings and alloy coatings such as zinc-nickel. One special feature of this compact measuring device is that it detects the thickness and composition of a layer simultaneously with just one measurement.
Mobile, universal instrument for coating thickness measurement and material analysis in laboratory quality
Can be used flexibly indoors and outdoors
Three-point support and geometry enable secure contact with the sample
Variable measuring direction for measuring bulky objects or even small parts
Battery charge lasts up to six hours of operation
Silicon drift detector for highest precision on thin films
Three-point support and geometry enable safe placement on the sample
Measuring spot approx.: Ø 3 mm

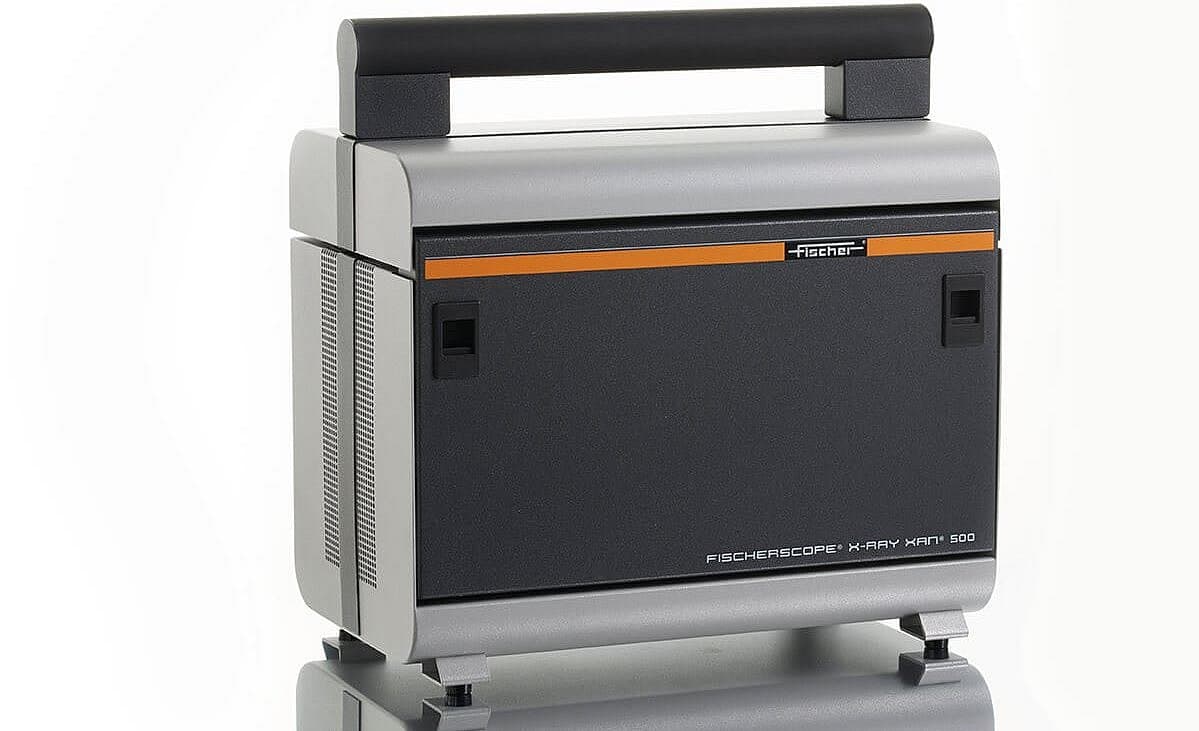

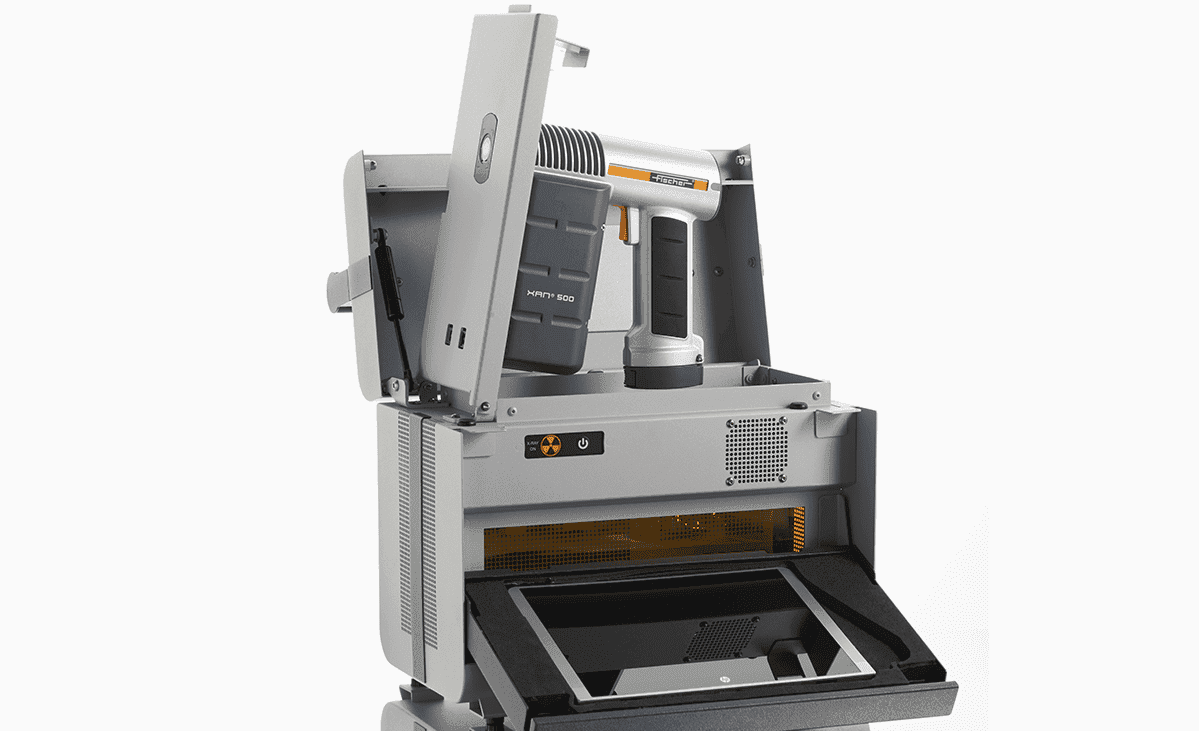

Portable measuring box turns system into XRF tabletop unit
IP54 protection class for outdoor use
Determination of metal content in electroplating baths with corresponding accessories
Up to 6 h operating time with one battery charge
Weight: 1.9 kg
Do you have other applications? Then contact us!
Features
- Silicon drift detector for highest precision on thin films
- Three-point support and geometry enable safe placement on the sample
- Measuring spot approx.: Ø 3 mm
- Portable measuring box turns system into XRF tabletop unit
- IP54 protection class for outdoor use
- Determination of metal content in electroplating baths with corresponding accessories
- Up to 6 h operating time with one battery charge
- Weight: 1.9 kg
- At the same time layer thickness and composition in one measurement
- IP54 for outdoor use
- Precise like no other thanks to silicon drift detector
- Simultaneous determination of coating thickness and composition with only one measurement (such as ZnNi on Fe)
- Standard-free measuring of unknown alloys

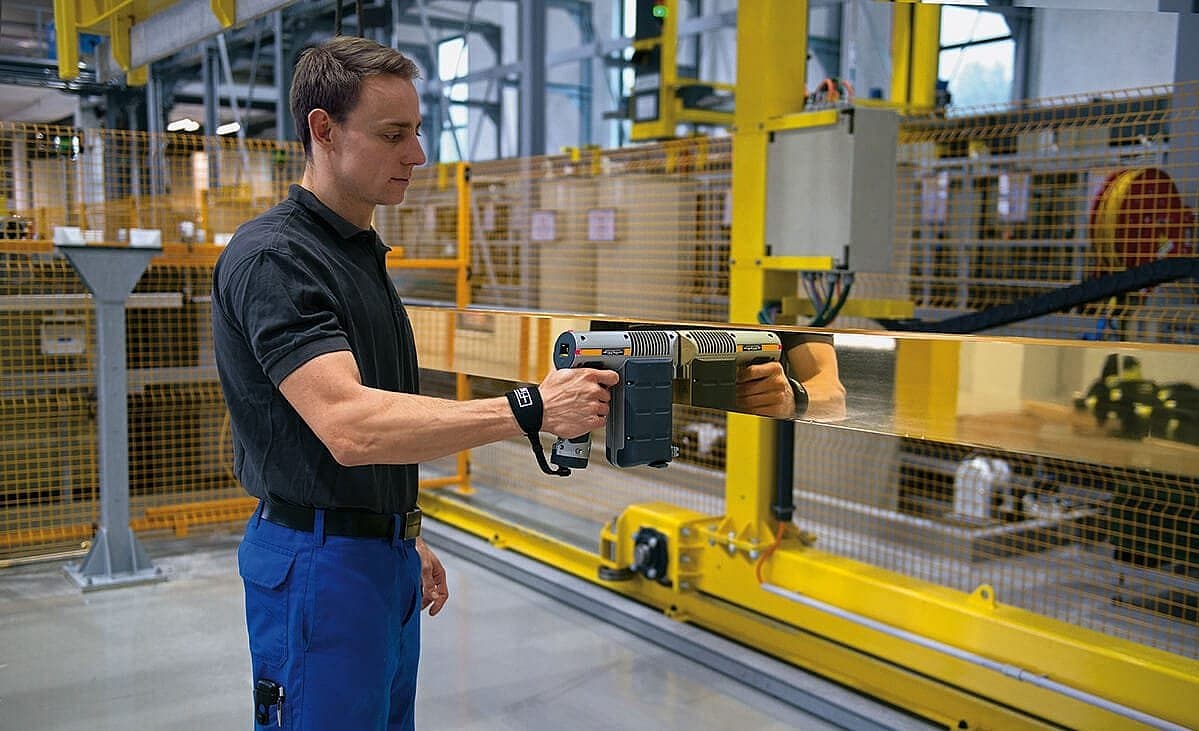

- Measuring of large coated parts, such as machine components and housings
- Testing of electroplated layers
- Analysis of metal content of electroplating baths
- Analysis of bulky objects and small parts using the measuring box
