FISCHERSCOPE® X-RAY MODULAR CHAMBER
Measuring on large workpieces.
Large special housing for integrating Fischer X-ray measurement technology for measuring coating thickness and material analysis on large workpieces.
Key Benefits
- Reliable.: Precise measurement through measuring points on the entire sample surface
- Think big.: Large chamber for large samples
- Tailor-made.: Different models offer the optimal solution for your application and requirements; flexible and modularly scalable
- Configurable.: Size and design according to your requirements
Description

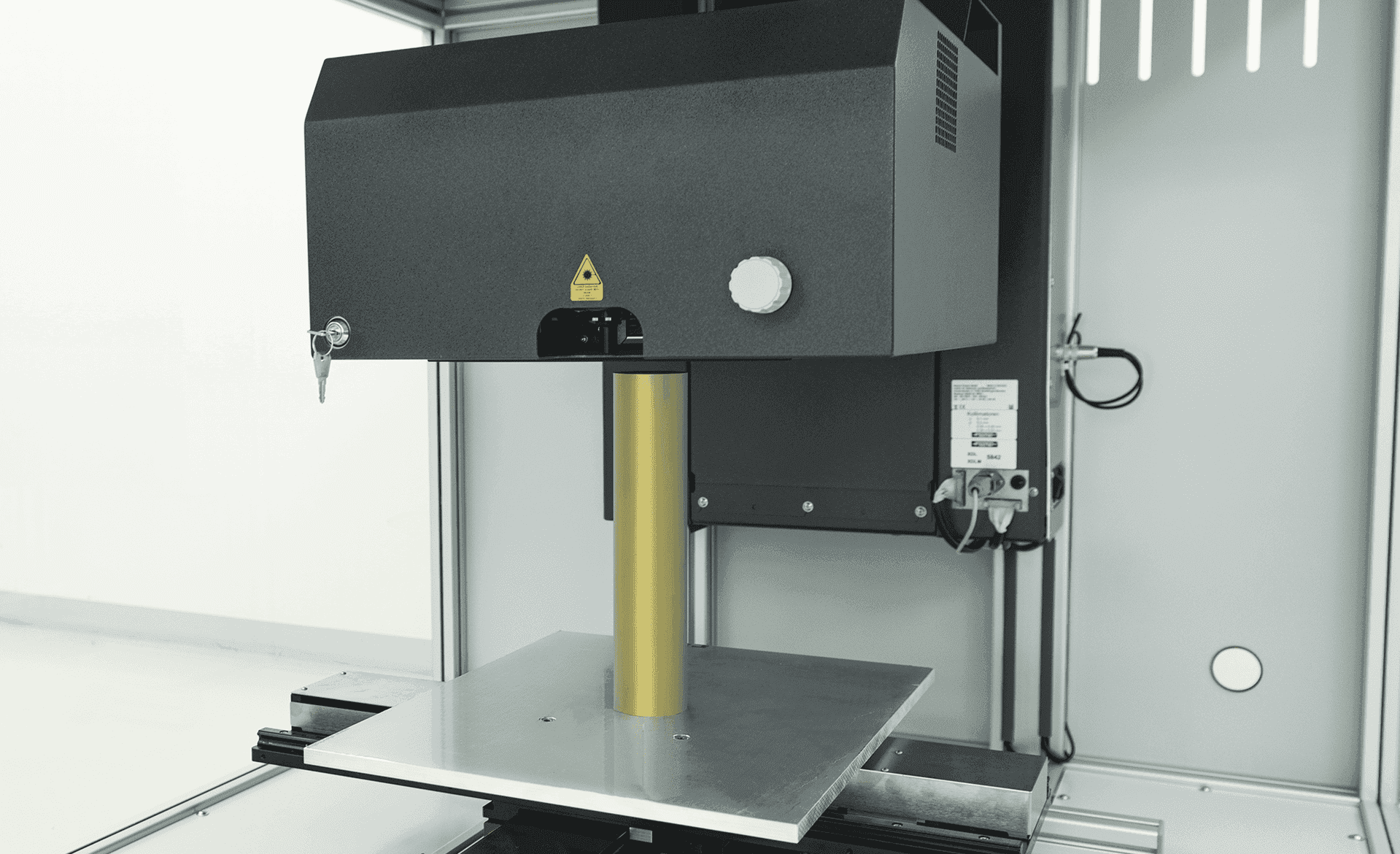

Large special housing for integrating Fischer X-ray measurement technology for coating thickness measurement and material analysis on large workpieces.
The FISCHERSCOPE® X-RAY MODULAR CHAMBER combines a large housing with Fischer's proven XRF measurement technology. You receive the measuring technology of your choice mounted in a chamber adapted to your needs. The FISCHERSCOPE® devices of the XDL®, XDLM® and XDAL® series can be integrated.
Precise measurement through measuring points on the entire sample surface
Large chamber for large samples
Different models offer the optimal solution for your application and requirements; flexible and modularly scalable
Size and design according to your requirements
Fischer WinFTM® software guarantees you most comprehensive functionalities and measurement applications
Robust enclosure and proven Fischer measurement technology
Integration of the FISCHERSCOPE® X-RAY instruments XDL®, XDLM® and XDAL®
Various detectors ensure very good detection accuracy and high resolution: Proportional counter tube, silicon PIN or silicon drift detector
Various X-ray tubes, filters and apertures, depending on the device

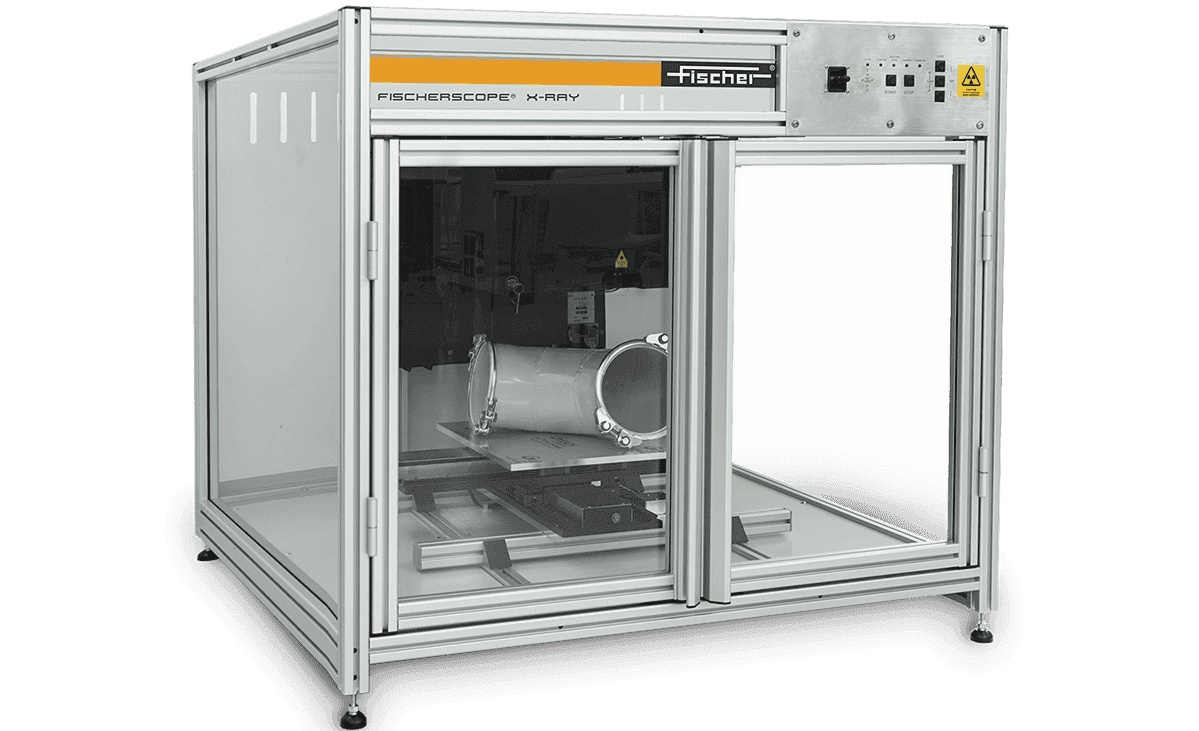

Various measuring table options
Standard chamber size with approx. 1 m³ and 1.5 m³ or customized
Features
- Large chamber for large samples
- Flexible and modular scalable: Optimal for your application
- Measuring table: Fixed or programmable
