SR-SCOPE® DMP®30
First choice for copper thickness measurement.
Robust and powerful handheld device for measuring the copper thickness on PCBs without the influence of underlying layers.
Key Benefits
- Built to last.: Next level quality and durability thanks to all-aluminum housing
- Perfect fit.: Measure 24/7 due to quick and easy battery change
- Full measuring control.: Feedback via light, sound and vibration whether measured values are within tolerance within tolerance
- Digital probe.: Fully digitized probe for the most demanding measurement tasks
Description
Robust and powerful handheld device for measuring copper thickness on PCBs.
Comprehensive functionalities are processed in a robust and high-quality housing with a modern design and accompanied with our intuitive FISIQ® T software. Our SR-SCOPE® DMP®30 is specially designed for measuring copper layers on PCBs. Check copper thickness precisely and reliably without the influence of underlying layers in your production process, in either incoming or outgoing goods.
Next level quality and durability thanks to all-aluminum housing
Measure 24/7 due to quick and easy battery change
Feedback via light, sound and vibration whether measured values are within tolerance within tolerance
Fully digitized probe for the most demanding measurement tasks

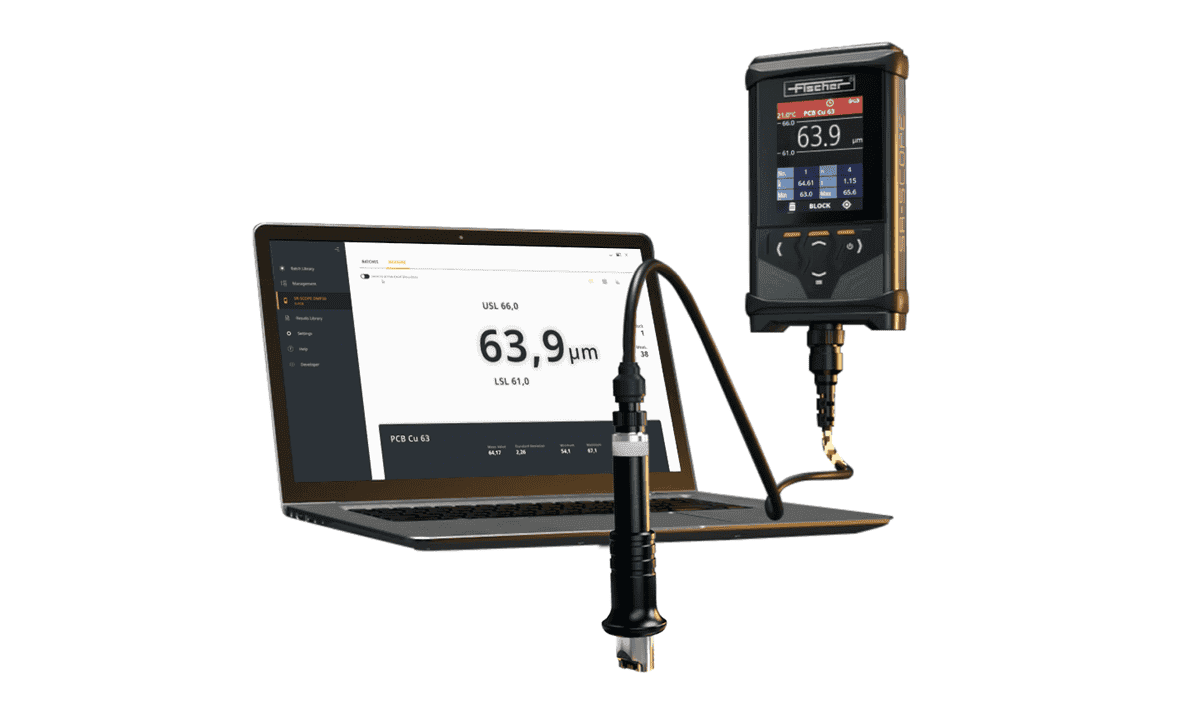

Automatic device recognition, easy data export and comprehensive reporting
Measuring method: Microresistivity
Coating thickness measurement using the electrical 4-point resistance method in accordance with DIN EN 14571
Measuring range: 0.5 - 10 µm or 5 - 120 µm
Measured value memory: 250,000 in 2,500 applications
Automatic device detection and easy data transfer via USB-C and Bluetooth
Robust aluminum housing with protection class IP64

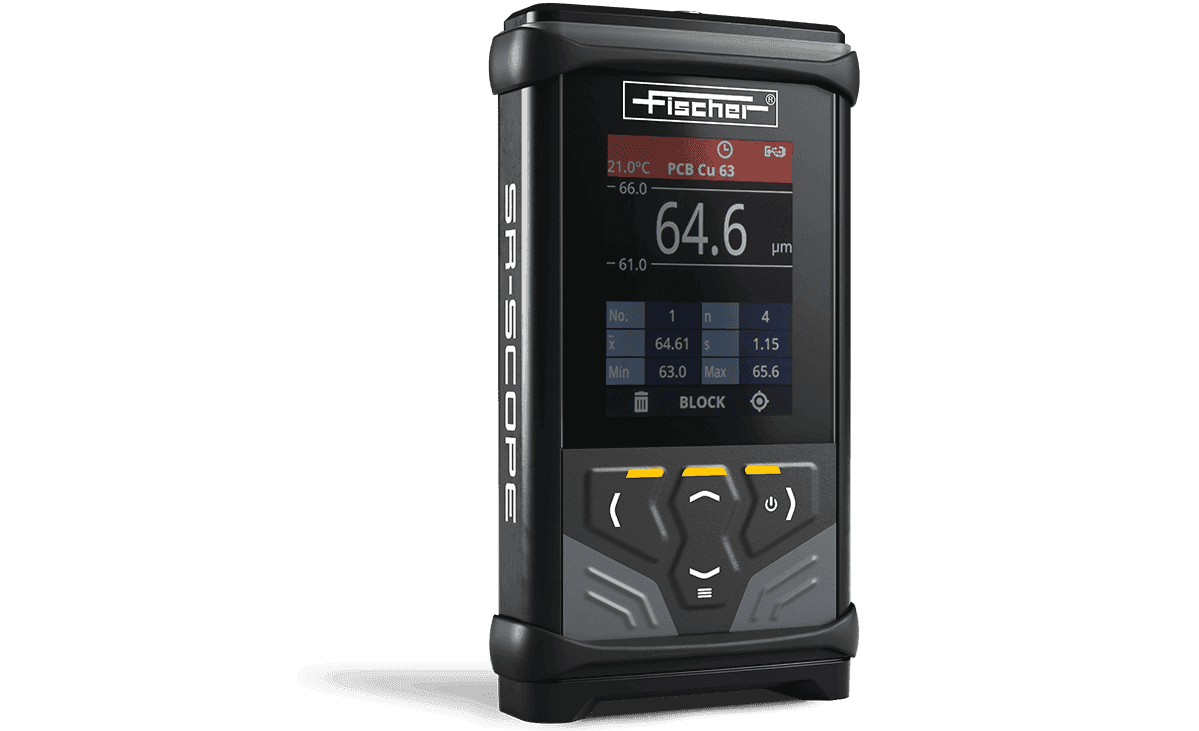

Replaceable Li-ion battery for > 24 h operating time
Digital probe D-PCB available
Limit value monitoring via light, sound and vibration
Do you have other applications? Then contact us!
Features
- Measuring method: Microresistivity
- Coating thickness measurement using the electrical 4-point resistance method in accordance with DIN EN 14571
- Measuring range: 0.5 - 10 µm or 5 - 120 µm
- Measured value memory: 250,000 in 2,500 applications
- Automatic device detection and easy data transfer via USB-C and Bluetooth
- Robust aluminum housing with protection class IP64
- Replaceable Li-ion battery for > 24 h operating time
- Digital probe D-PCB available
- Limit value monitoring via light, sound and vibration
- Robust and durable thanks to all-aluminum housing and IP64
- Limit value monitoring via light, sound and vibration
- Rechargeable and exchangeable battery
- Measuring the copper thickness on the top side of PCBs and multilayers, without the insulated copper layers lying deeper influencing the measurement
- Copper layer thicknesses from 0.5 - 10 µm and 5 - 120 µm
