MP0® series
The small all-rounders for mobile coating thickness measurement.
Leading industrial instrument series for fast and easy coating thickness measurement in corrosion protection and industrial applications.
Key Benefits
- Perfect fit.: The devices of the DUALSCOPE® family automatically select the right test method for your measuring task
- Flexible.: Available in many different configurations depending on requirements
- Compact.: Fits in any pocket
- Up to all challenges.: Precise measurement on many surfaces in a wide range of coating thicknesses
Description
Leading industrial instrument series for fast and easy coating thickness measurement in corrosion protection and industrial applications.
Practical to use and easy to handle, the MP0® series measuring gauges are a compact solution for measuring coating thickness onsite quickly and reliably. With two illuminated displays, a robust housing, and an intuitive user interface, they are your ideal companion for measuring on-the-go. Use these small handheld gauges to measure coating thicknesses (e. g. paint coating thickness or hot-dip galvanized coating thickness) on practically all metals quickly, easily and non-destructively.
The devices of the DUALSCOPE® family automatically select the right test method for your measuring task
Available in many different configurations depending on requirements
Fits in any pocket
Precise measurement on many surfaces in a wide range of coating thicknesses
Suitable for thousands of measurements thanks to low wear probe pole

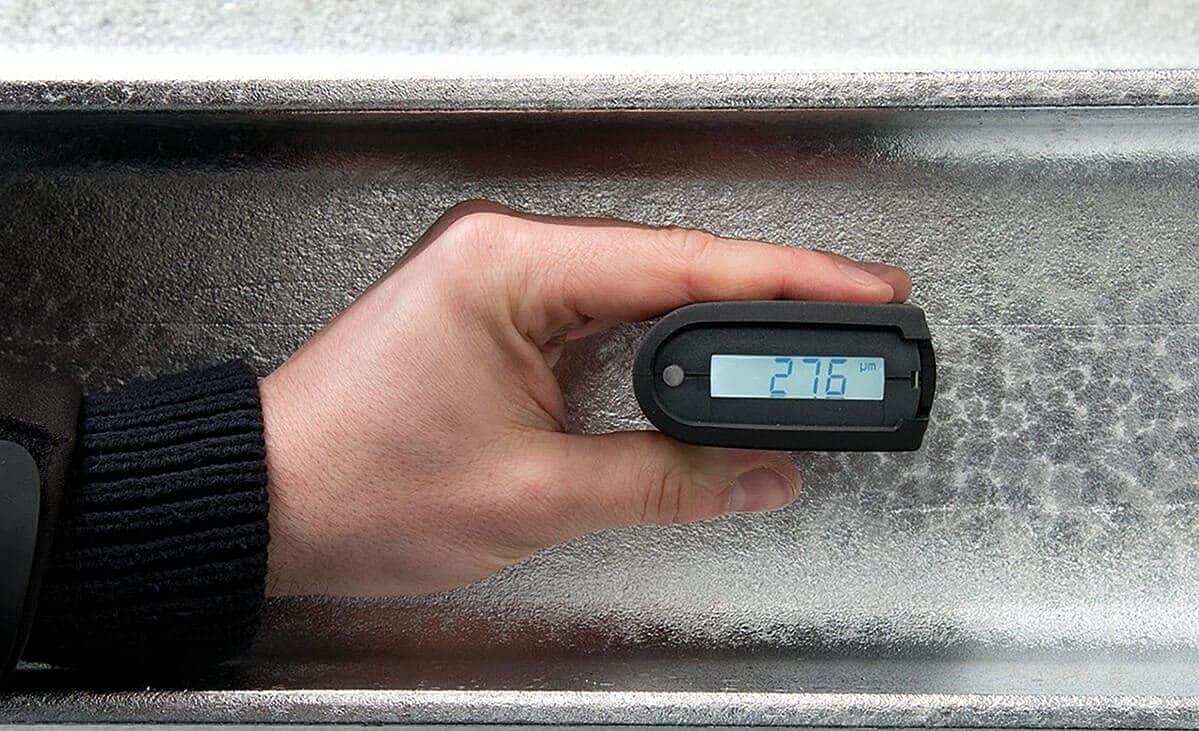

Compact design and 2-display solution
Measuring method: Magnetic induction and amplitude-sensitive eddy current
Measuring range: DUALSCOPE®: 0 - 2,000 µm / ISOSCOPE®: 0 - 1,200 µm / PERMASCOPE®: 0 - 2,500 µm
High-precision conductivity compensation
Measured value memory: 10,000 or 1,000 in one application, depending on the device
Probe integrated in the device, FP(W) models with connected probe for a wide range of applications
Pre-installed measurement modes for thickness measurement according to IMO PSPC or SSPC-PA2 (MP0®R)
Limit value monitoring via light
Measuring method:
Amplitude-sensitive eddy current method and magnetic induction measuring method
Applications:
Measurement of non-magnetic or electrically non-conductive layers on magnetic or non-magnetic, electrically conductive base materials
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Amplitude-sensitive eddy current method
Applications:
Measuring electrically insulating layers on non-magnetic, electrically conductive metals
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Magnetic induction measuring method
Applications:
Measurement of non-magnetic layers on magnetic base materials
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Amplitude-sensitive eddy current method and magnetic induction measuring method
Applications:
Measurement of non-magnetic or electrically non-conductive layers on magnetic or non-magnetic, electrically conductive base materials
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Amplitude-sensitive eddy current method
Applications:
Measuring electrically insulating layers on non-magnetic, electrically conductive metals
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Magnetic induction measuring method
Applications:
Measurement of non-magnetic layers on magnetic base materials
Application examples:
Do you have other applications? Then contact us!
Features
- Measuring method: Magnetic induction and amplitude-sensitive eddy current
- Measuring range: DUALSCOPE®: 0 - 2,000 µm / ISOSCOPE®: 0 - 1,200 µm / PERMASCOPE®: 0 - 2,500 µm
- High-precision conductivity compensation
- Measured value memory: 10,000 or 1,000 in one application, depending on the device
- Probe integrated in the device, FP(W) models with connected probe for a wide range of applications
- Pre-installed measurement modes for thickness measurement according to IMO PSPC or SSPC-PA2 (MP0®R)
- Limit value monitoring via light
- Measured values shown in two displays
- Ergonomic design
- Compact: fits in every pocket
- Precise coating thickness measurements on practically all non-ferrous metals
- Paint, lacquer or plastic coatings on aluminum, copper or brass
- Anodized coatings on aluminium
Documents
- AN009 Measurement of powder layer thicknesses0.76 MB
- AN011 Measuring protective coatings in accordance with SSPC-PA20.35 MB
- AN013 Hot-dip galvanisation as corrosion protection0.43 MB
- AN071 Complying with regulations concerning coating thickness inside storage tanks0.53 MB
- AN091 Different ways to achieve valid measurement values and optimize measurement performance0.20 MB
- Product overview: Complete portfolio3.17 MB
- Product overview: Tactile measuring devices4.82 MB
