DMP®10-40 series
The multi-talented series for coating thickness measurement.
Universal device series for tactile coating thickness measurement thanks to enormously wide probe portfolio.
Key Benefits
- Built to last.: Next level quality and durability thanks to all-aluminum housing
- Digital probes.: Fully digitized probes for the most demanding measurement tasks
- Backward compatible.: Use all of your existing Fischer probes thanks to exchangeable adapter
- Perfect fit.: Measure 24/7 due to quick and easy battery change
Description
Thanks to its enormously wide probe portfolio, the DMP®10-40 series is our universal device series for tactile coating thickness and dry film thickness measurement.
¹ Vibrating alarm available for DUALSCOPE® DMP®40, DELTASCOPE® DMP®30 and ISOSCOPE® DMP®30.

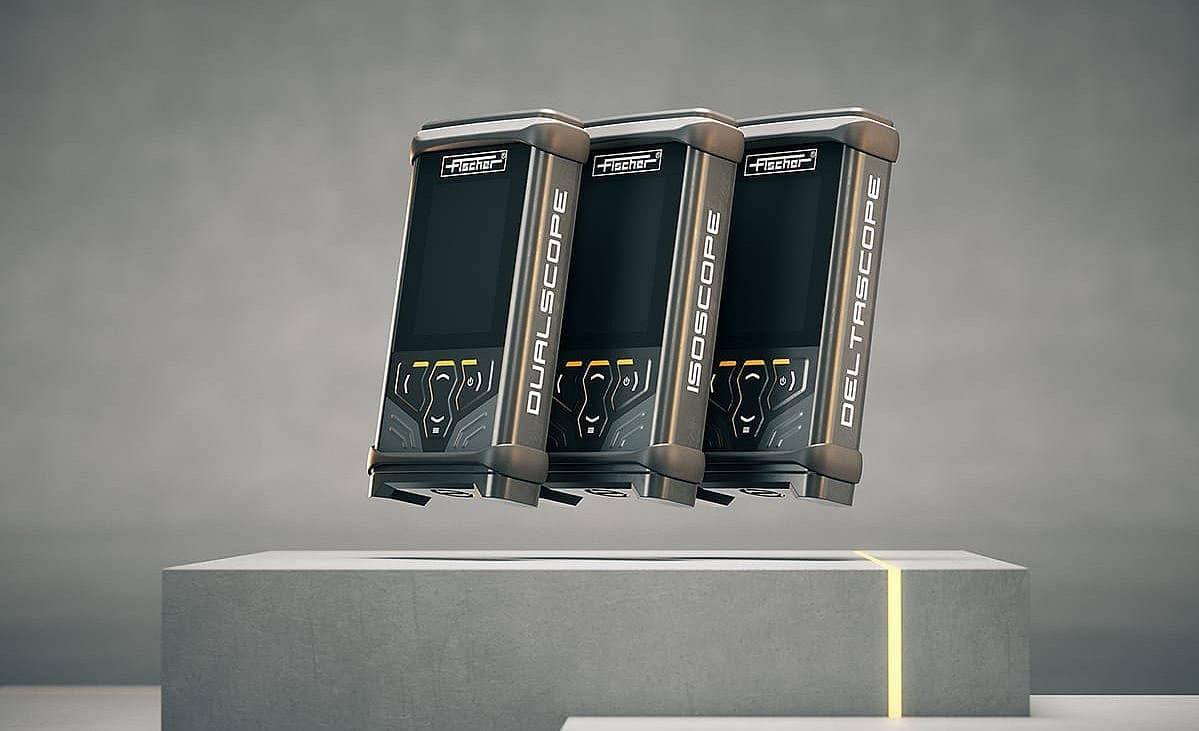

The compact handheld gauges of the DMP® 10-40 series are versatile and can be used for a wide range of applications, especially in the area of quality assurance. With a robust and ergonomic design, extensive functions and a wide range of probes, these flexible devices are the perfect solution for tactile and non-destructive coating thickness or dry film thickness measurement on ferrous and non-ferrous base materials.
Next level quality and durability thanks to all-aluminum housing

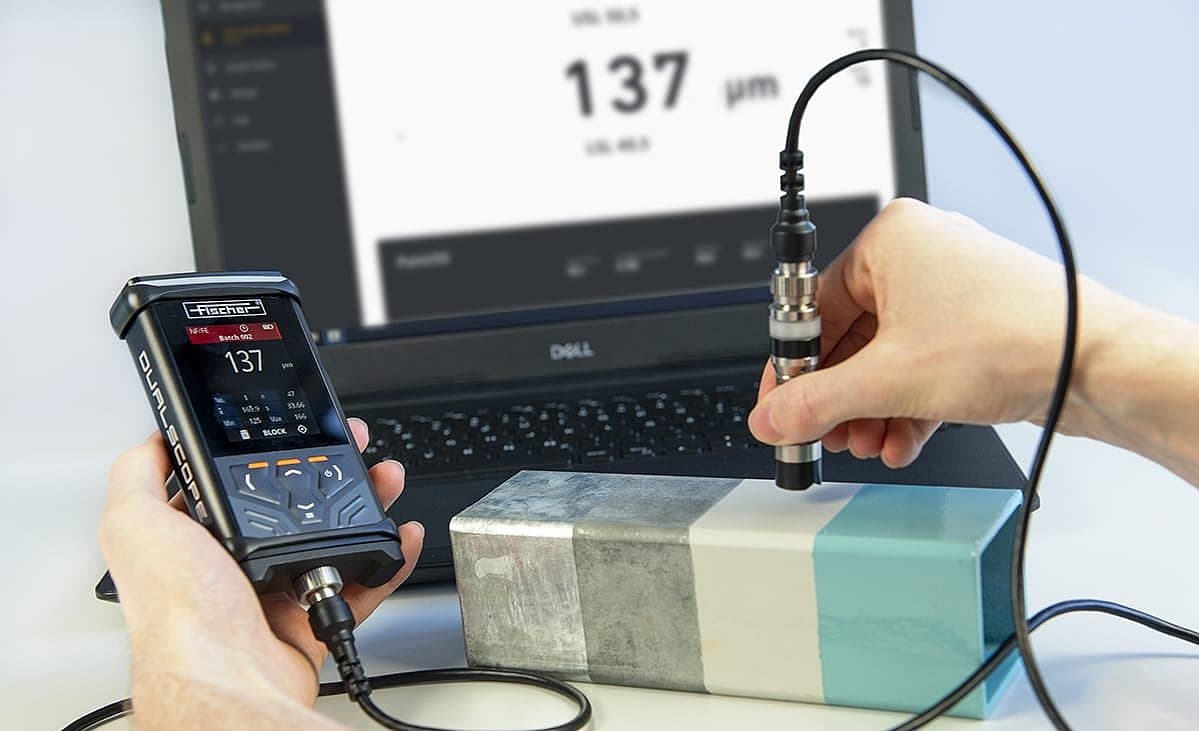

Fully digitized probes for the most demanding measurement tasks

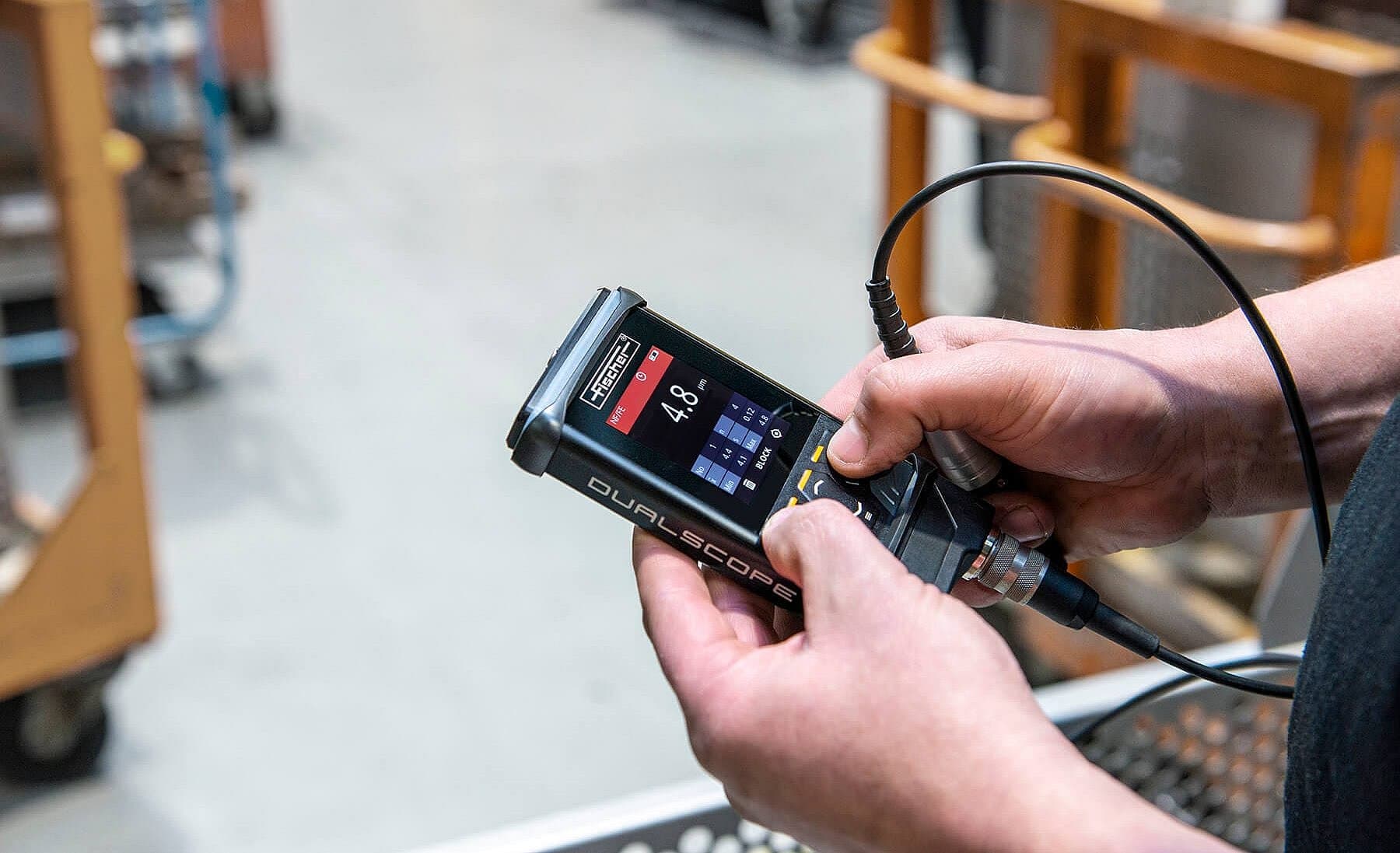

Use all of your existing Fischer probes thanks to exchangeable adapter
Measure 24/7 due to quick and easy battery change
Feedback via light, sound and vibration whether measured values are within tolerance
Automatic device recognition, easy data export and comprehensive reporting
Test method: Magnetic induction and amplitude-sensitive eddy current method
Digital probes available for a wide range of applications, analog probes backwards compatible thanks to F-adapter
Measuring range: Depending on the combination of coating and base material and the used probe
Automatic device detection and easy data transfer via USB-C and Bluetooth, depending on the device
Measured value memory: 10,000 in one batch or 250,000 in 2,500 batches, depending on the device
Robust aluminum housing with protection class IP64

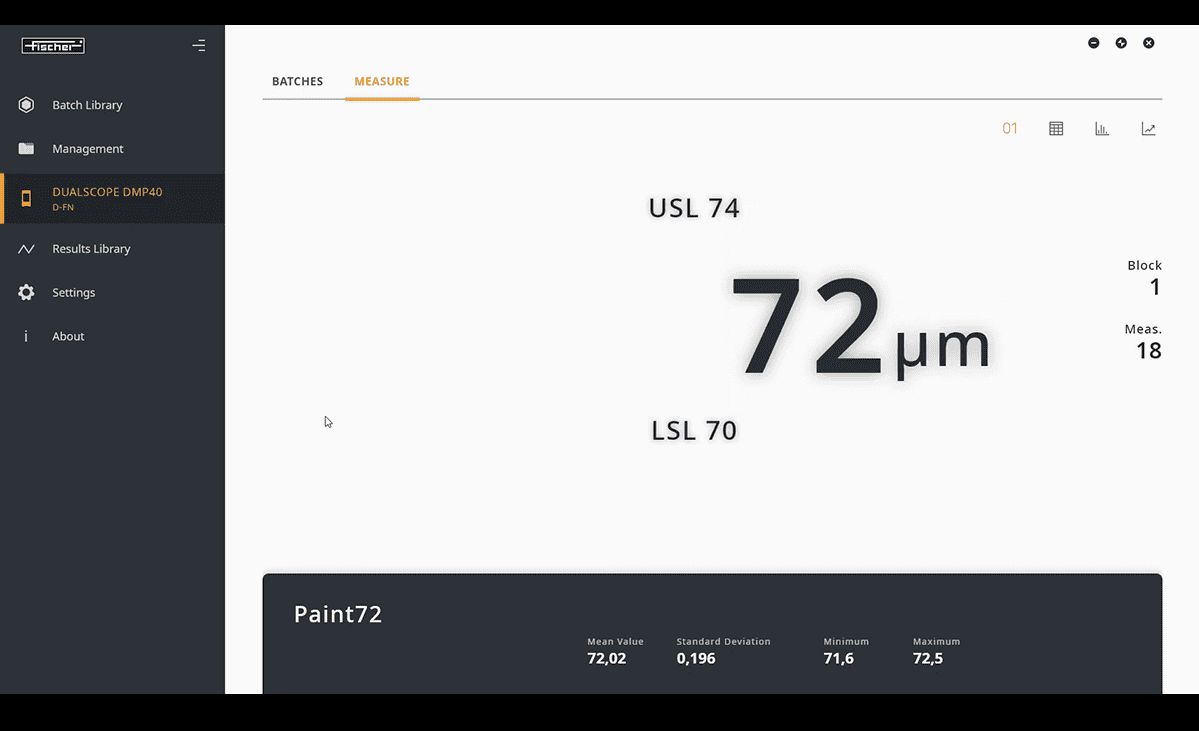

Most powerful software in tactile coating thickness measurement: FISIQ® T
Replaceable Li-Ion battery for > 24 h operating time
Limit monitoring via light, sound and vibration, depending on the device
Measuring method:
Amplitude-sensitive eddy current method and magnetic inductive measuring method
Applications:
Measurement of non-magnetic or electrically non-conductive coatings on magnetic or non-magnetic, electrically conductive base materials
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Amplitude-sensitive eddy current method
Applications:
Measurement of electrically insulating coatings on non-magnetic, electrically conductive metals
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Magnetic inductive measuring method
Applications:
Measurement of non-magnetic coatings on magnetic base materials
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Amplitude-sensitive eddy current method and magnetic inductive measuring method
Applications:
Measurement of non-magnetic or electrically non-conductive coatings on magnetic or non-magnetic, electrically conductive base materials
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Amplitude-sensitive eddy current method
Applications:
Measurement of electrically insulating coatings on non-magnetic, electrically conductive metals
Application examples:
Do you have other applications? Then contact us!
Measuring method:
Magnetic inductive measuring method
Applications:
Measurement of non-magnetic coatings on magnetic base materials
Application examples:
Do you have other applications? Then contact us!
Features
- Test method: Magnetic induction and amplitude-sensitive eddy current method
- Digital probes available for a wide range of applications, analog probes backwards compatible thanks to F-adapter
- Measuring range: Depending on the combination of coating and base material and the used probe
- Automatic device detection and easy data transfer via USB-C and Bluetooth, depending on the device
- Measured value memory: 10,000 in one batch or 250,000 in 2,500 batches, depending on the device
- Robust aluminum housing with protection class IP64
- Most powerful software in tactile coating thickness measurement: FISIQ® T
- Replaceable Li-Ion battery for > 24 h operating time
- Limit monitoring via light, sound and vibration, depending on the device
- Robust and durable thanks to all-aluminum housing and IP64
- Limit monitoring via light, sound and vibration ¹
- Rechargeable and exchangeable battery
- ISO on NF: Paint, lacquer or plastic coatings on Al, Cu, CuZn
- ISO on NF: Anodized layers on Al
Documents
- AN007 Thickness measurement of conformal coatings on printed circuit boards0.99 MB
- AN020 Measurement of SAM (sprayable acoustic material) coatings for the automotive industry0.47 MB
- AN023 Thickness measurement of INCONEL coatings on heat exchanger tubes2.36 MB
- AN036 Measurement of cladding coatings with the FGB2 probe0.81 MB
- AN040 Controlling the thickness of solder resist in the manufacture of printed circuit boards0.94 MB
- AN046 Measurement of thick NiP coatings on automotive parts0.78 MB
- AN066 Measuring lacquer coatings on rough surfaces0.59 MB
- AN075 Measuring anti-fouling coatings on marine structures1.05 MB
- AN077 Measuring the thickness of micaceous iron oxide coatings1.03 MB
- AN084 Thickness of protective coatings on wristwatch dials0.66 MB
- AN091 Different ways to achieve valid measurement values and optimize measurement performance0.20 MB
- AN103 Measurement of coatings on non-ferrous metals and magnetizable metals with the dual probe D-FN0.58 MB
- Flyer: DMP® series0.77 MB
- Product overview: Complete portfolio3.17 MB
- Product overview: Tactile measuring devices4.82 MB
