DUALSCOPE® FMP100 and H FMP150
Coating thickness measurement at the highest level.
The device series for maximum flexibility and control in coating thickness measurement. Ideal for the use of inspection plans.
Key Benefits
- Two in one.: Magnetic induction and eddy current method for highest flexibility (FMP100)
- Inspection plans.: Step-by-step measurement guide to reduce user errors
- Meeting all challenges.: Reliable and fast results for ambitious measurement tasks
- Three in one.: Magnetic induction, magnetic and eddy current method for highest flexibility (FMP150)
Description
The handheld device series for maximum flexibility and control in measuring coating thickness. Ideal for use with inspection plans.
The powerful DUALSCOPE® FMP100 and DUALSCOPE® H FMP150 coating thickness gauges are specially engineered for the most demanding measuring tasks in quality assurance. The DUALSCOPE® FMP100 combines the magnetic inductive measuring method and the eddy current method in one device. This allows you to measure coating thicknesses on steel and coating thicknesses on non-ferrous metals without changing the measuring device. The DUALSCOPE® H FMP150 furthermore offers you the magnetic method.
Magnetic induction and eddy current method for highest flexibility (FMP100)
Step-by-step measurement guide to reduce user errors
Reliable and fast results for ambitious measurement tasks
Magnetic induction, magnetic and eddy current method for highest flexibility (FMP150)
Choose the right probe for your application
Fast and simple operation thanks to intuitive menu
Automatic probe and base material detection
Measuring method: Magnetic induction method, eddy current method and magnetic method, depending on the device
Simple data transfer via USB
Measured value memory: For a large number of measurements
Optionally available: Create individual test plans with additional, fee-based software license

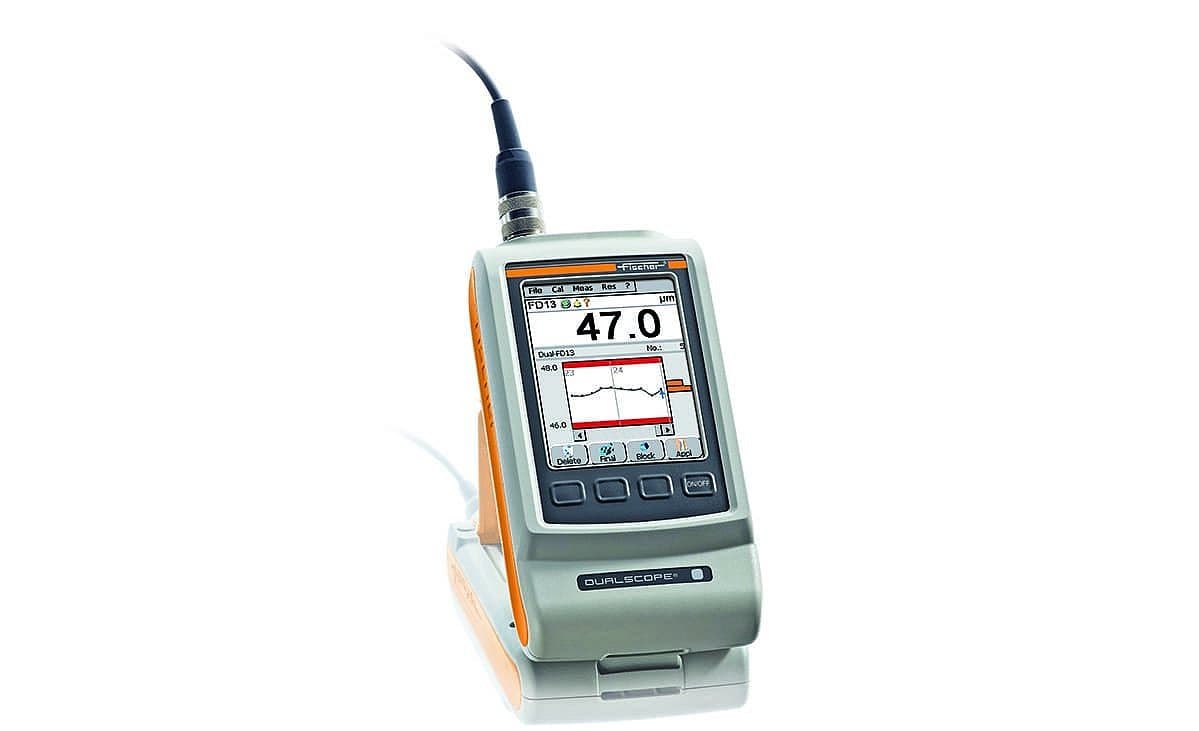

High-resolution touchscreen display with virtual keyboard, operable with pen or finger
Limit value monitoring via sound
Measuring range: Dependent on coating-base material combination and probe used
Probes available for a wide range of applications
Do you have other applications? Then contact us!
Features
- Automatic probe and base material detection
- Measuring method: Magnetic induction method, eddy current method and magnetic method, depending on the device
- Simple data transfer via USB
- Measured value memory: For a large number of measurements
- Optionally available: Create individual test plans with additional, fee-based software license
- High-resolution touchscreen display with virtual keyboard, operable with pen or finger
- Limit value monitoring via sound
- Measuring range: Dependent on coating-base material combination and probe used
- Probes available for a wide range of applications
- Step-by-step test plans for the reduction of user errors
- Reliable measurement results on curved and rough surfaces
- Optimize quality processes and save time

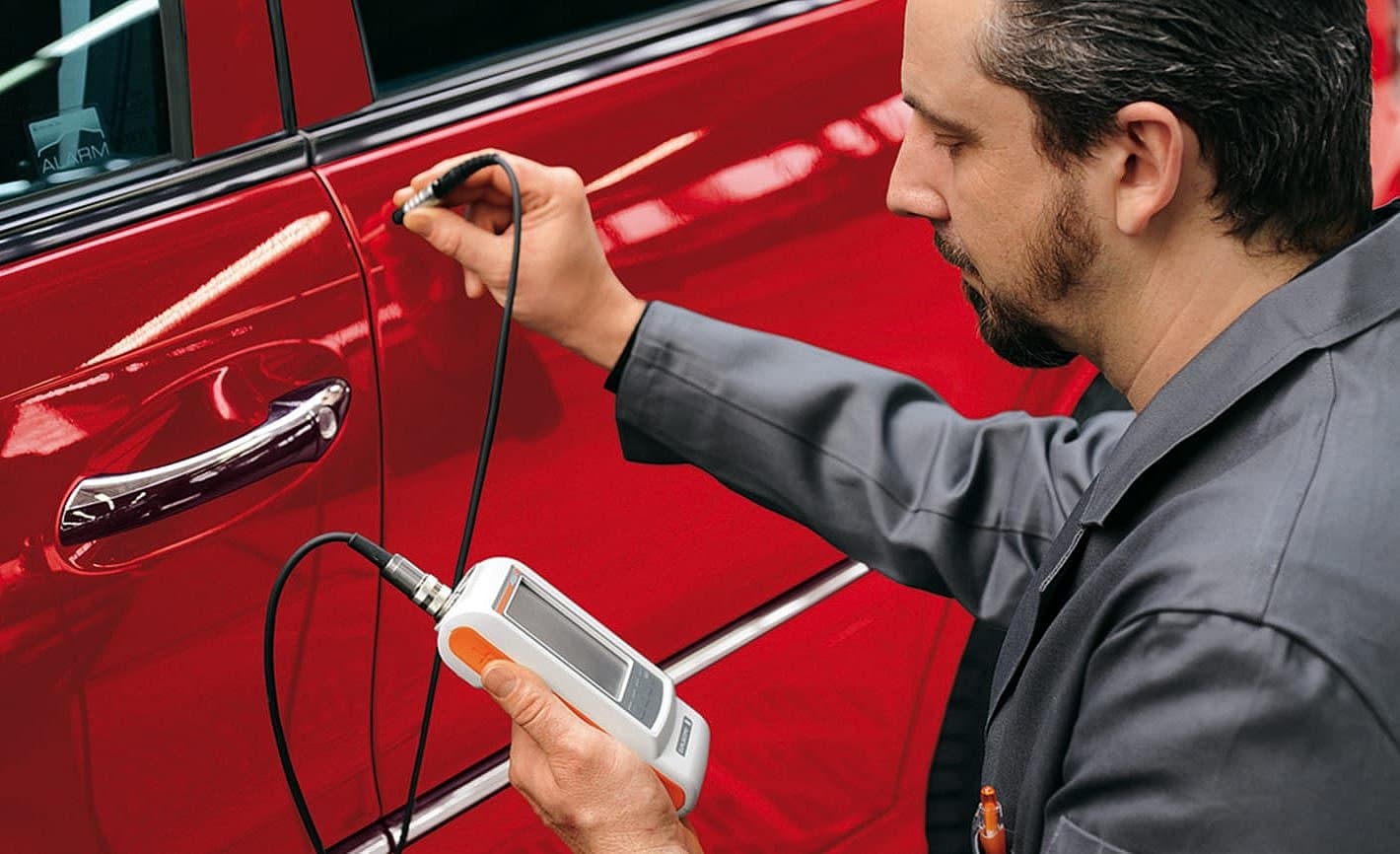

- Non-magnetic coatings on iron and steel
- Insulating layers on non-ferrous metals
- Duplex coatings (paint/fire zinc) on steel in the area of heavy corrosion protection, whereby the paint and zinc coatings are measured in one measurement process and displayed separately
- Thick metal and protective coatings on steel or iron (DUALSCOPE® H FMP150)
- Nickel layers on non-ferrous metals or electrical insulators (DUALSCOPE® H FMP150)
