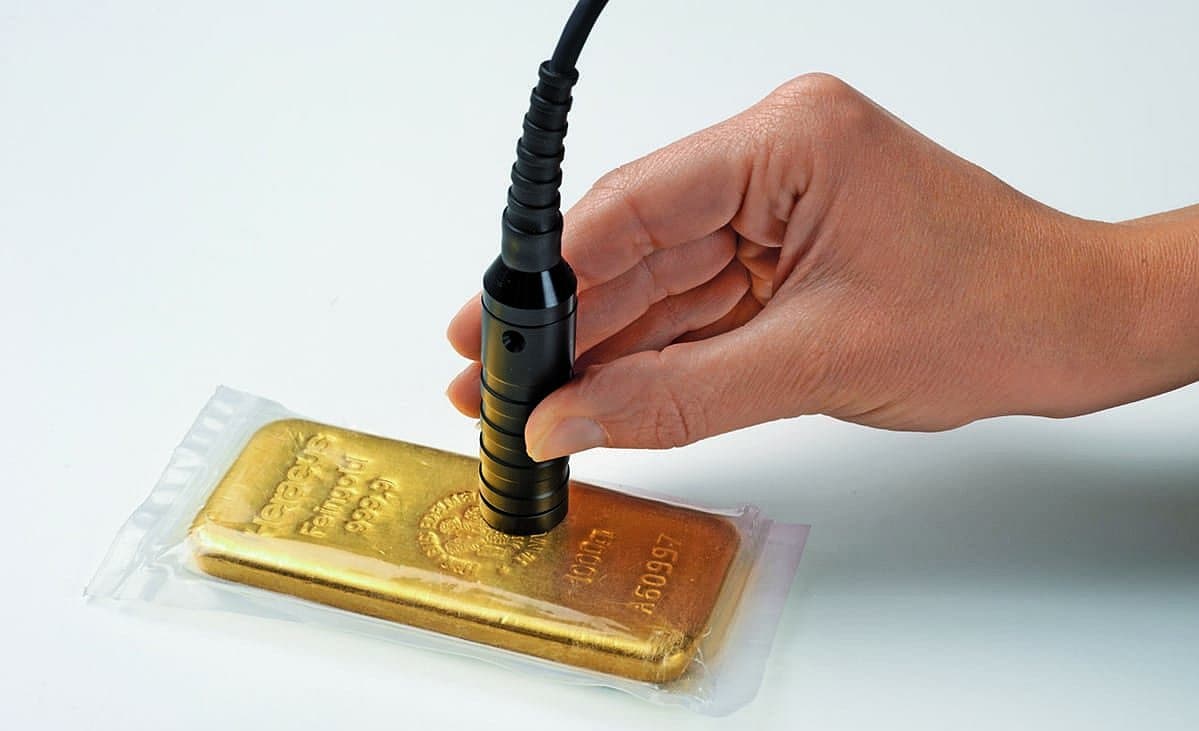

With the SIGMASCOPE® GOLD B you can reliably and non-destructively check the authenticity of gold bars up to a thickness of 17 mm and a weight of up to around one kilogram.

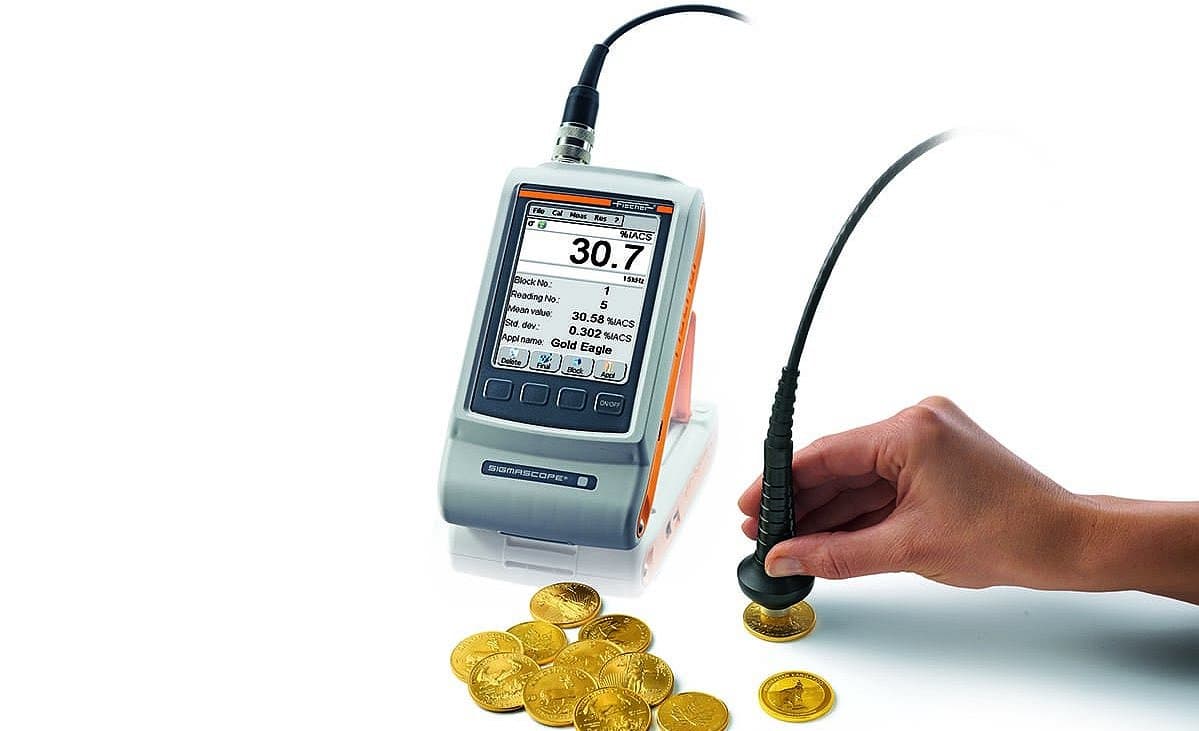

With the SIGMASCOPE® GOLD C, you can check the authenticity of coins and thin bars weighing up to around 100 grams in a non-destructive manner.

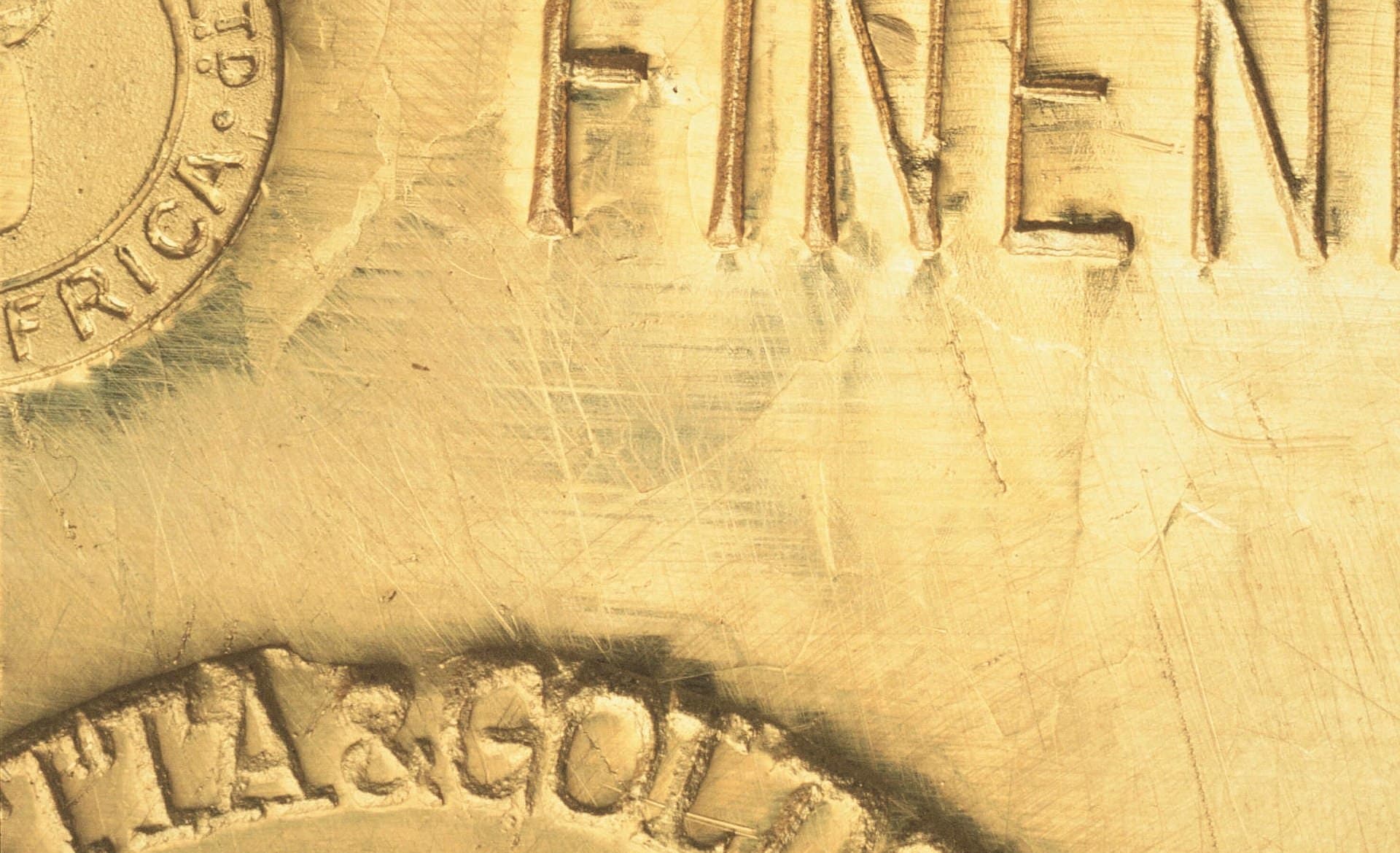

The advantage of non-destructive conductivity measurement lies in materials of the same density: inclusions of foreign materials such as tungsten can be reliably detected.

Precise and non-destructive measuring of precious metals, coins and gold in the laboratory or retail store in a matter of seconds.

Helmut Fischer

SIGMASCOPE® GOLD B and GOLD C

Play it safe with gold.

The special devices for mobile and non-destructive authenticity checks of gold, precious metals and coins.

Key Benefits

Suitable for the gold industry.: Prevents purchase of fake coins and gold bars
Easy to use.: Operation via high-contrast touchscreen display with user-friendly user interface
Well equipped.: Perfect complement to your Fischer XRF instrument
Your safety.: Distinguish between counterfeit and original in seconds

View on Helmut Fischer

AnalyticalTactile Measuring Devices

Description

Specially engineered devices for mobile and non-destructive authenticity checks of gold, precious metals and coins.

With the compact SIGMASCOPE® GOLD B and SIGMASCOPE® GOLD C handheld measuring gauges, you can reliably determine the authenticity of precious metals and thus detect counterfeits reliably and non-destructively. Distinguish counterfeit gold bars from pure gold, check large pieces of jewelry such as pocket watches for authenticity, or detect expensive counterfeits of precious metal with the help of electrical conductivity. In short: you'll know immediately whether an object to be measured is genuine.

Prevents purchase of fake coins and gold bars

Operation via high-contrast touchscreen display with user-friendly user interface

Perfect complement to your Fischer XRF instrument

Distinguish between counterfeit and original in seconds

Measure even through non-conductive cover layers like foil packaging

Measuring method: Phase-sensitive eddy current method

Limit value monitoring via sound

Probes available for a wide range of applications

High-precision conductivity measurement in accordance with DIN 50994

Variable depths of indentation suiting the thickness of the object to be measured

Measured value memory: For a large number of measurements

Measuring frequency: GOLD B: 100, 500 and 1,000 Hz / GOLD C: 15, 30, 60 and 120 kHz

Simple data transfer via USB interface

Measuring range: GOLD B: Gold bars from approx. 1 oz (31.1 g) - 1kg / GOLD C: Gold coins and bars up to approx. 100 g

SIGMASCOPE® GOLD B

SIGMASCOPE® GOLD C

Do you have other applications? Then contact us!

Features

Measuring method: Phase-sensitive eddy current method
Limit value monitoring via sound
Probes available for a wide range of applications
High-precision conductivity measurement in accordance with DIN 50994
Variable depths of indentation suiting the thickness of the object to be measured
Measured value memory: For a large number of measurements
Measuring frequency: GOLD B: 100, 500 and 1,000 Hz / GOLD C: 15, 30, 60 and 120 kHz
Simple data transfer via USB interface
Measuring range: GOLD B: Gold bars from approx. 1 oz (31.1 g) - 1kg / GOLD C: Gold coins and bars up to approx. 100 g
In seconds distinguish counterfeit from original
Possible measurement through plastic packaging
Variable depths of indentation suitable for the thickness of the object to be measured
Non-destructive testing of gold bars from approx. 1 oz (31.1 g) to 1 kg
Detection of base inclusions (e.g. tungsten)
Non-destructive testing of gold coins and bars up to approx. 100 g
Testing the gold alloys of coins
Identification of commercially available precious metal coins such as Krugerrands, ducats etc. based on the specific conductivity values
