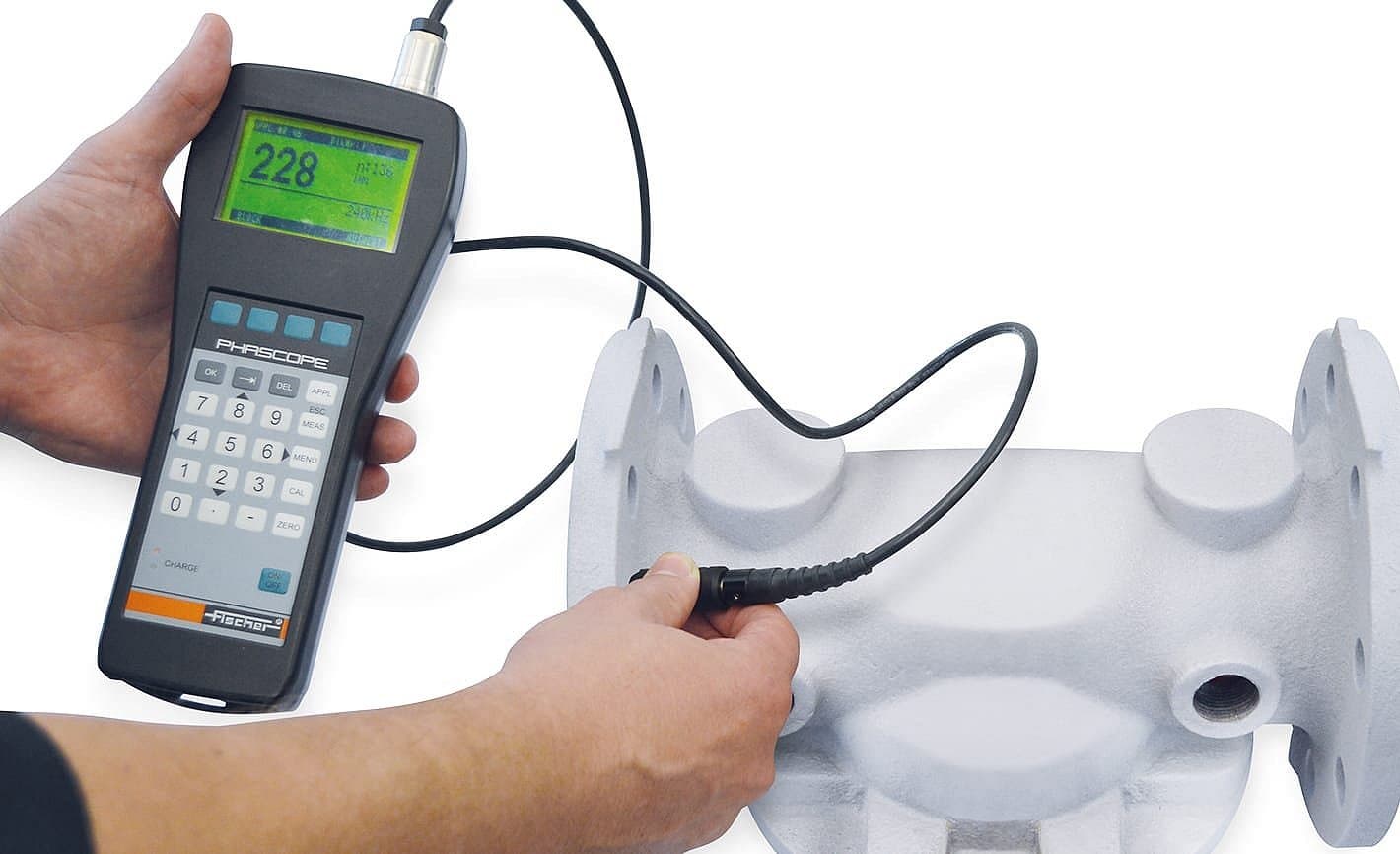

Optimize your quality processes and save time with the ultimate coating thickness gauge for the automotive industry.

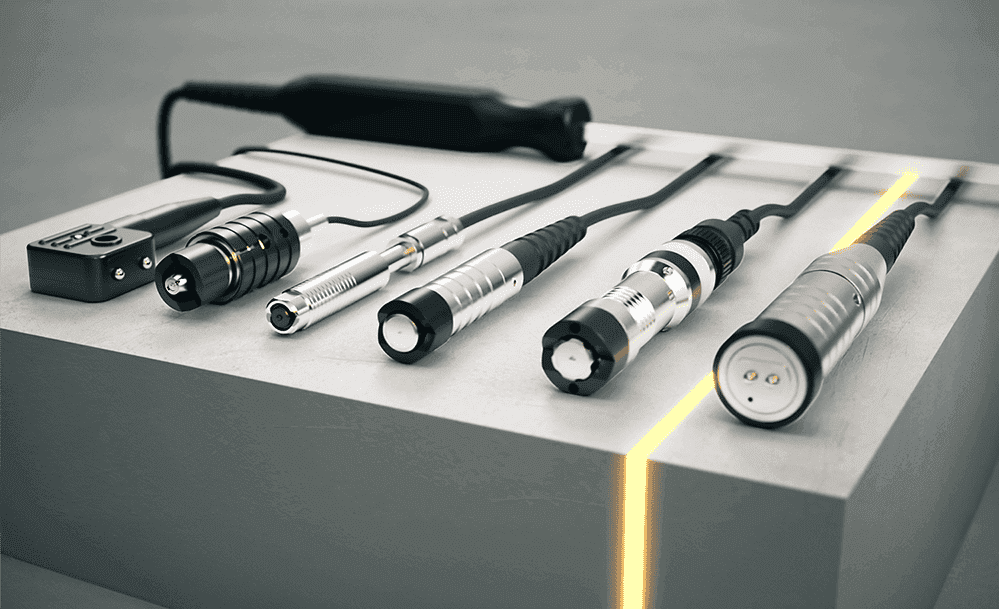

Benefit from the largest probe portfolio on the market.

Helmut Fischer

PHASCOPE® PMP10 DUPLEX

The professional for duplex measuring.

The specialist for measuring the thickness of duplex layers from automotive to roof panels.

Key Benefits

Predestined for small parts.: Thanks to measurement with the phase-sensitive eddy current test method
Your security.: Reliable measurement results on curved measuring surfaces and rough surfaces
Measurement in just one pass.: Optimize quality processes and save time when measuring paint and zinc coatings
Three in one.: Combines three different measuring methods

View on Helmut Fischer

AnalyticalTactile Measuring Devices

Description

The specialist for measuring the thickness of duplex layers from automotive to roof panels.

The PHASCOPE® PMP10 DUPLEX combines three measuring methods for measuring duplex coatings in the automotive industry. The magnetic induction method according to DIN EN ISO 2178 measures the total thickness of paint/zinc layers on iron. The amplitude-sensitive eddy current method according to DIN EN ISO 2360 measures a single paint layer on aluminum. The phase-sensitive eddy current method according to ISO 21968 measures layers of zinc on iron, overlying paint layers are not taken into account.

Thanks to measurement with the phase-sensitive eddy current test method

Reliable measurement results on curved measuring surfaces and rough surfaces

Optimize quality processes and save time when measuring paint and zinc coatings

Combines three different measuring methods

Automatic base material recognition simplifies measurement on steel or aluminum, as probe does not need to be changed

Measuring method: Magnetic inductive, amplitude sensitive and phase sensitive eddy current

Measured value memory: 20,000

DUAL measuring mode: Display of the total coating thickness (paint and zinc) on iron or paint on aluminum

Data transfer via RS232 interface, optional USB

Measuring mode DUPLEX: Display of paint on zinc on iron or paint on aluminum

Measuring range: Depending on coating-base material combination and probe used 0 - 2,000 µm

Do you have other applications? Then contact us!

Features

Measuring method: Magnetic inductive, amplitude sensitive and phase sensitive eddy current
Measured value memory: 20,000
DUAL measuring mode: Display of the total coating thickness (paint and zinc) on iron or paint on aluminum
Data transfer via RS232 interface, optional USB
Measuring mode DUPLEX: Display of paint on zinc on iron or paint on aluminum
Measuring range: Depending on coating-base material combination and probe used 0 - 2,000 µm
Unique on the market: Phase-sensitive eddy current method
3 measuring methods for measuring duplex layers
Robust design, ideal for ambitious measuring tasks
Duplex measurements such as paint/zinc on steel
Paint on aluminum and paint on zinc on iron
Micrometer-thin layers on non-ferrous metals, steel or iron
Multilayer systems consisting of individual, thin layers in the micrometer range
Measuring on curved geometries such as convex and concave surfaces as well as rough surfaces
