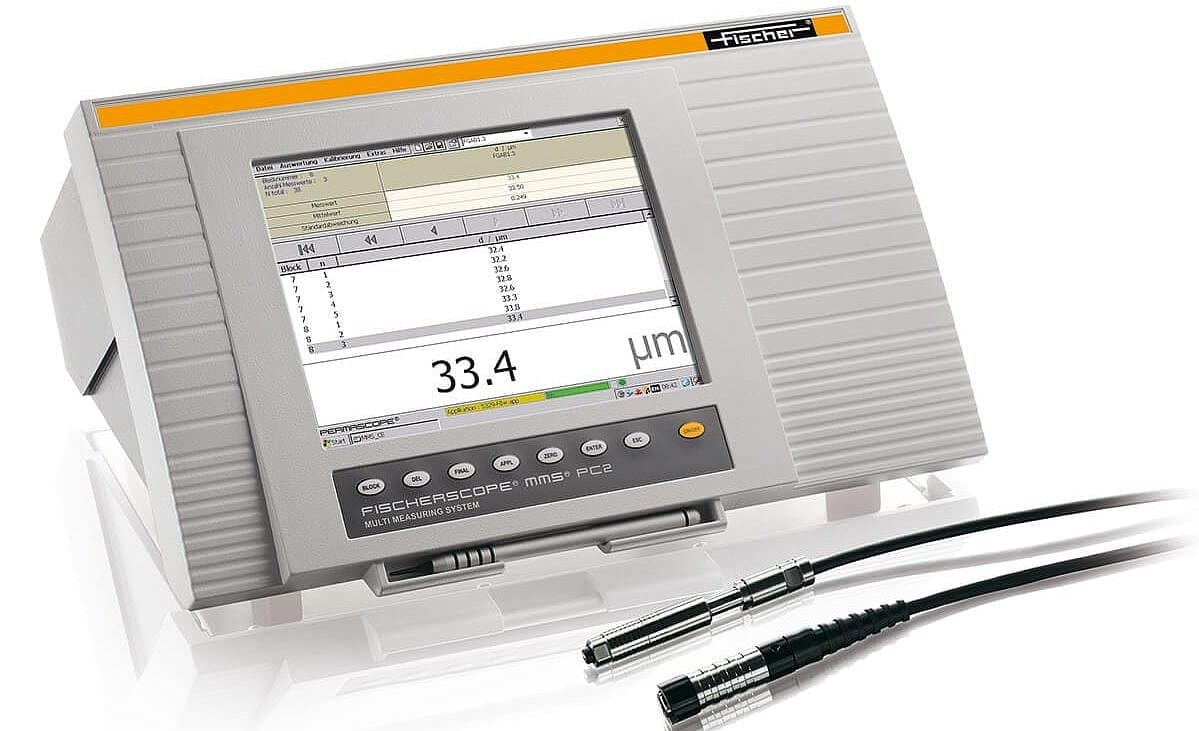

FISCHERSCOPE® MMS® PC2
Multi-talented device for coating thickness measurement and material testing.
Universal multi-measuring system for parallel coating thickness measurement and material testing with up to eight measuring modules.
Key Benefits
- One instrument, many possibilities.: Enables different test methods for coating thickness, conductivity and ferrite content
- Easy to use.: Simple device operation and graphically supported user guidance
- Individually configurable.: Adaptable to the applications of your industry
- Perfect fit.: Measure manually or semi-automatically; system adapts to your measuring and testing requirements
Description
Universal multi-measuring system for parallel coating thickness measurement and material testing with up to eight measuring modules.

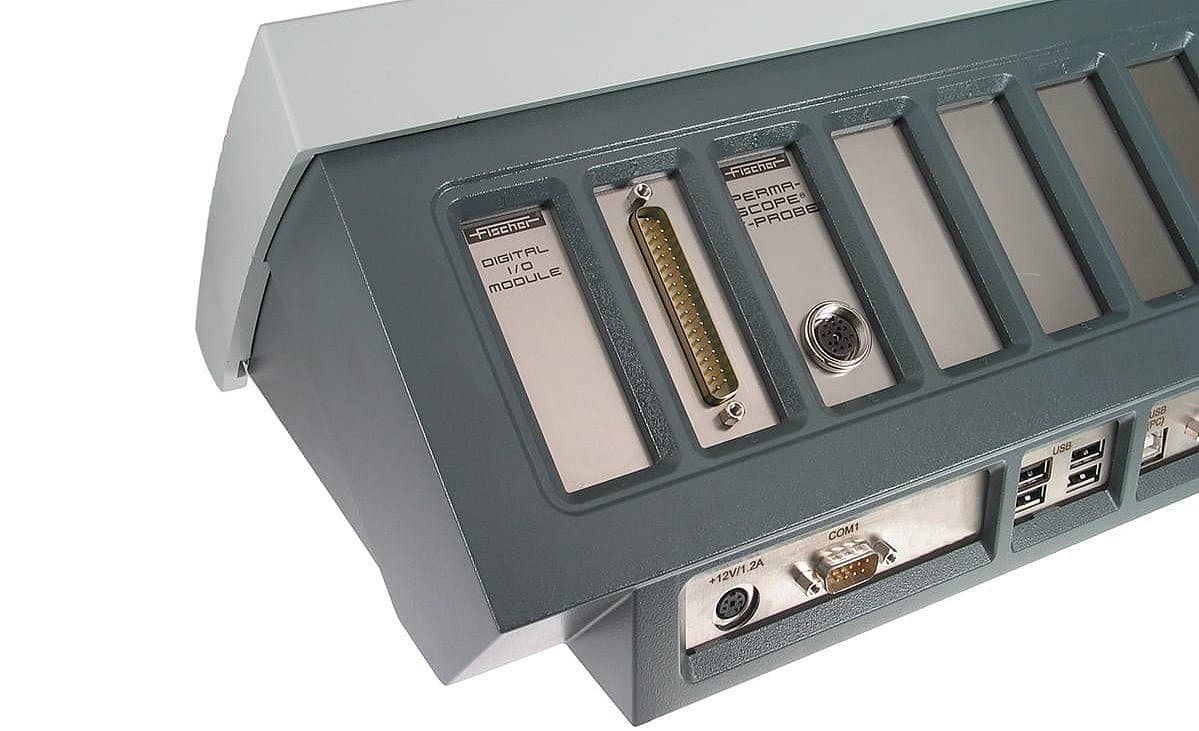

As an all-in-one measuring system, the FISCHERSCOPE® MMS® PC2 saves you time and money by eliminating the need for multiple specialized devices while streamlining your quality management processes. The modular design of the FISCHERSCOPE® MMS® PC2 allows for customization and expansion of the system – the variety of measuring methods, 6 in one device, makes it suitable for a wide range of applications and can be used both manually and automatically.
Enables different test methods for coating thickness, conductivity and ferrite content
Simple device operation and graphically supported user guidance
Adaptable to the applications of your industry
Measure manually or semi-automatically; system adapts to your measuring and testing requirements
Simultaneous evaluation with up to eight probes for maximum flexibility
100 different applications, 8 installation locations and > 60 probes
Measuring methods: Amplitude- and phase-sensitive eddy current method, magnetic, magnetic inductive, microresistivity and beta-backscattering method
Modules for coating thickness measurement: BETASCOPE®, NICKELSCOPE®, PERMASCOPE®, PHASCOPE® DUPLEX, PHASCOPE® ESL, SR-SCOPE®
Measuring the layer thickness of many material combinations
Manual or semi-automatic measuring with motorized stand or programmable XY-measuring table
Modules for material testing: PERMASCOPE® (ferrite content), SIGMASCOPE® (electrical conductivity), TEMPERATURE
Measured value memory: For a large number of measurements
Simple visualization of process quality with the production diagnosis diagram (FDD®)
Measuring range: Dependent on coating-base material combination and probe used
The PERMASCOPE® is a versatile module for coating thickness measurement. It combines two measuring methods: the magnetic induction and eddy current methods.
Typical applications:
Do you have other applications? Then contact us!
The SIGMASCOPE® / PHASCOPE® determines the electrical conductivity of metals and can be used either for coating thickness measurement or for identifying non-ferrous metals.
Typical applications SIGMASCOPE® / PHASCOPE®1:
Typical applications SIGMASCOPE® / PHASCOPE®2:
Do you have other applications? Then contact us!
The PHASCOPE® DUPLEX was specially developed for the automotive industry to measure duplex coatings (paint and zinc on steel) in a single step. It uses three measuring methods: the magnetic inductive measuring method as well as the amplitude-sensitive and phase-sensitive eddy current method.
Typical applications:
Do you have other applications? Then contact us!
The NICKELSCOPE® is based on the Hall effect and uses the different magnetizability of the coating and base material for coating thickness measurement.
Typical applications:
Do you have other applications? Then contact us!
The SR-SCOPE® is a special module for the electronics industry. It uses the micro-resistance method and is suitable for measuring the thickness of individual copper layers on multilayer PCBs - without the influence of deeper layers.
Typical applications:
Do you have other applications? Then contact us!
The microresistivity measurement method used by the SR-SCOPE® is very temperature-dependent. To be on the safe side and obtain precise and reproducible measurement results, the temperature module is the ideal addition to the SR-SCOPE® module.
The PERMASCOPE® is a versatile module for coating thickness measurement. It combines two measuring methods: the magnetic induction and eddy current methods.
Typical applications:
Do you have other applications? Then contact us!
The SIGMASCOPE® / PHASCOPE® determines the electrical conductivity of metals and can be used either for coating thickness measurement or for identifying non-ferrous metals.
Typical applications SIGMASCOPE® / PHASCOPE®1:
Typical applications SIGMASCOPE® / PHASCOPE®2:
Do you have other applications? Then contact us!
The PHASCOPE® DUPLEX was specially developed for the automotive industry to measure duplex coatings (paint and zinc on steel) in a single step. It uses three measuring methods: the magnetic inductive measuring method as well as the amplitude-sensitive and phase-sensitive eddy current method.
Typical applications:
Do you have other applications? Then contact us!
The NICKELSCOPE® is based on the Hall effect and uses the different magnetizability of the coating and base material for coating thickness measurement.
Typical applications:
Do you have other applications? Then contact us!
The SR-SCOPE® is a special module for the electronics industry. It uses the micro-resistance method and is suitable for measuring the thickness of individual copper layers on multilayer PCBs - without the influence of deeper layers.
Typical applications:
Do you have other applications? Then contact us!
The microresistivity measurement method used by the SR-SCOPE® is very temperature-dependent. To be on the safe side and obtain precise and reproducible measurement results, the temperature module is the ideal addition to the SR-SCOPE® module.
Features
- 100 different applications, 8 installation locations and > 60 probes
- Measuring methods: Amplitude- and phase-sensitive eddy current method, magnetic, magnetic inductive, microresistivity and beta-backscattering method
- Modules for coating thickness measurement: BETASCOPE®, NICKELSCOPE®, PERMASCOPE®, PHASCOPE® DUPLEX, PHASCOPE® ESL, SR-SCOPE®
- Measuring the layer thickness of many material combinations
- Manual or semi-automatic measuring with motorized stand or programmable XY-measuring table
- Modules for material testing: PERMASCOPE® (ferrite content), SIGMASCOPE® (electrical conductivity), TEMPERATURE
- Measured value memory: For a large number of measurements
- Simple visualization of process quality with the production diagnosis diagram (FDD®)
- Measuring range: Dependent on coating-base material combination and probe used
- 3-in-1: Layer thickness,conductivity and ferrite content
- Measure manually or automated
- Unique on the market: simultaneous evaluation

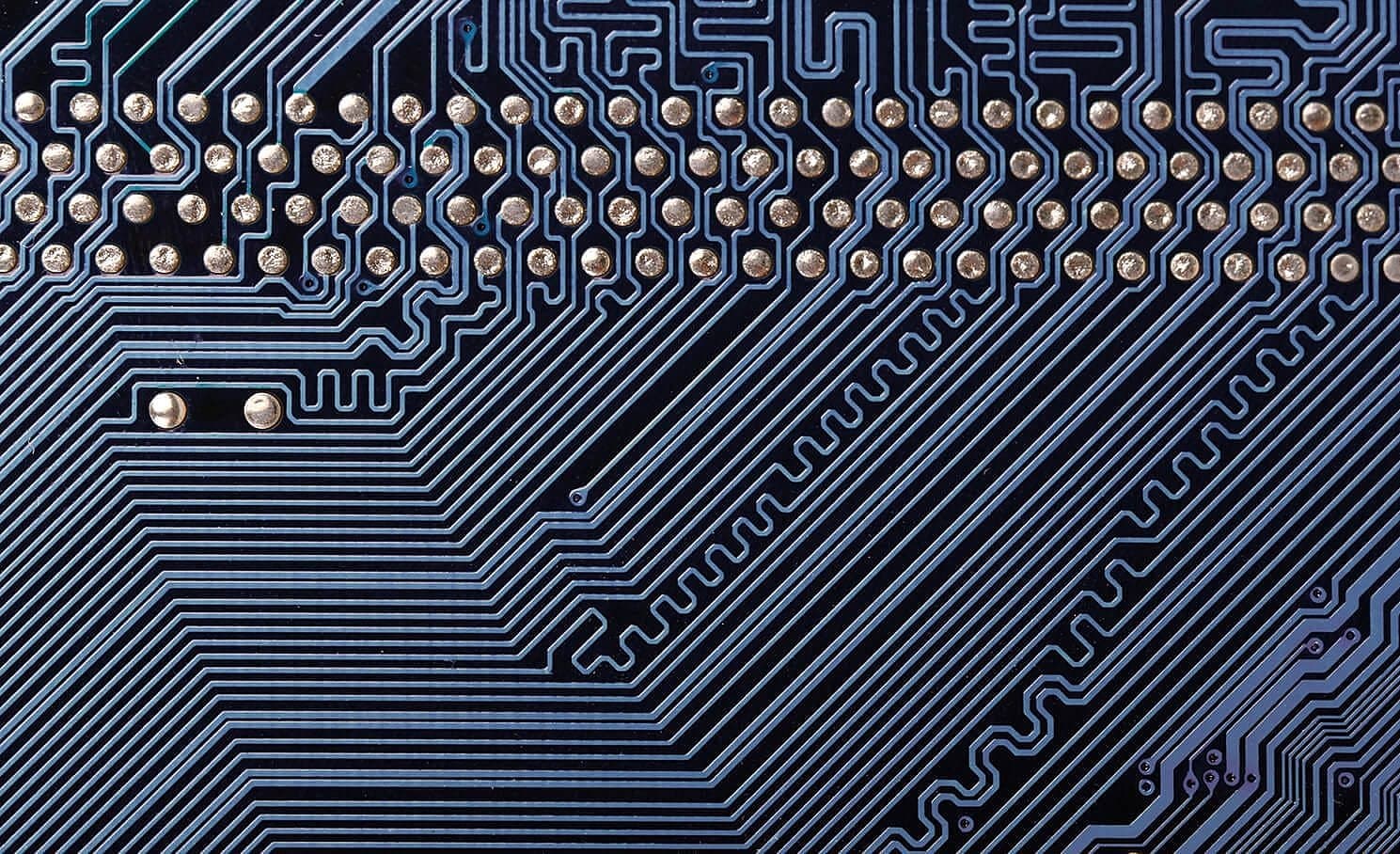

- Measuring copper layers on PCBs
- Testing of aluminum alloys in incoming goods
- Electrical conductivity of non-magnetic metals such as copper, aluminum, titanium
- Copper layers in printed circuit board holes
- Coatings of Cu, Zn, Ni on ferromagnetic base materials (steel or iron)
- Copper layers in printed circuit board holes
