FERITSCOPE® DMP®30
Specially designed for ferrite content measurement.
Robust and powerful handheld device for the measurement of ferrite and martensite content in steels with austenitic microstructures.
Key Benefits
- Digital probe.: Fully digitized probe for the most demanding measuring tasks
- Full measuring control.: Feedback via light, sound and vibration whether measured values are within tolerance
- Powerful software.: Automatic device recognition, easy data export and comprehensive reporting
- Perfect fit.: Measure 24/7 due to quick and easy battery change
Description
Robust and powerful handheld device for measuring ferrite and martensite content in steels with austenitic microstructures.
Extensive functionalities packed in a robust and high-quality all-aluminum housing with a modern design and paired with our intuitive FISIQ® T software: The FERITSCOPE® DMP®30 is specially engineered for measuring ferrite and martensite content in chemical plants, energy plants or process plants, even in hard-to-reach places.

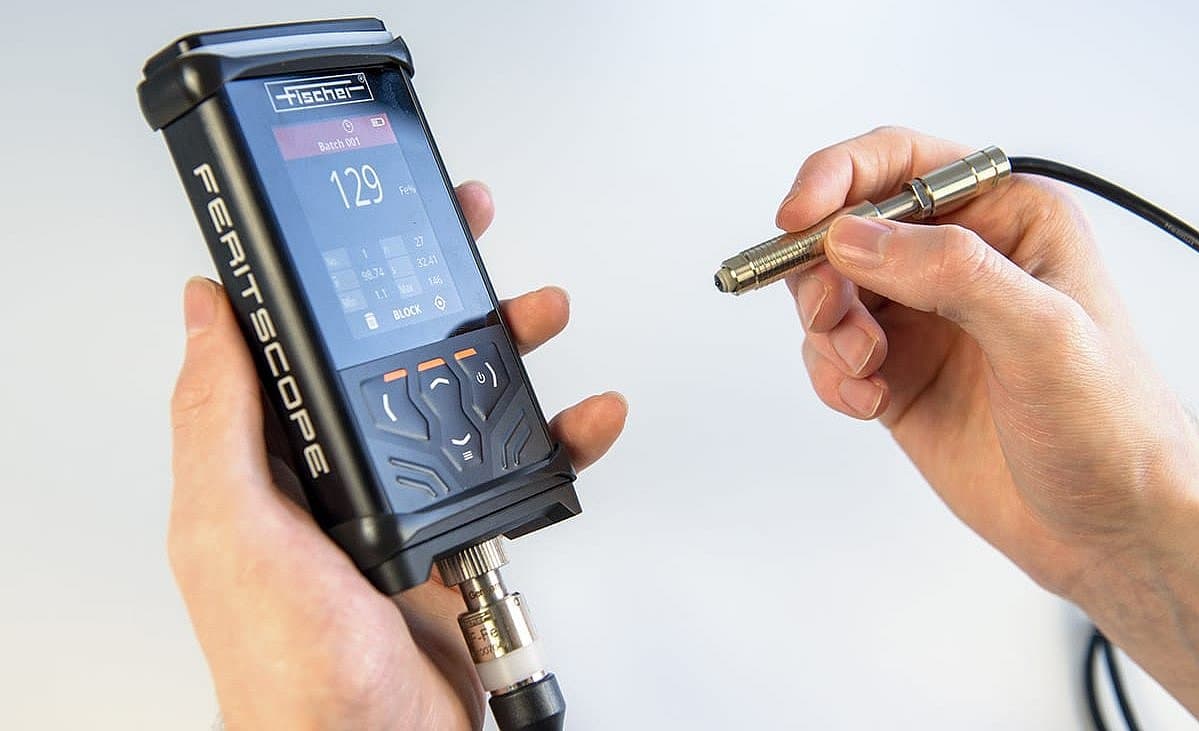

Fully digitized probe for the most demanding measuring tasks
Feedback via light, sound and vibration whether measured values are within tolerance
Automatic device recognition, easy data export and comprehensive reporting
Measure 24/7 due to quick and easy battery change
Next level quality and durability thanks to all-aluminum housing
Use your existing Fischer probes thanks to exchangeable adapter

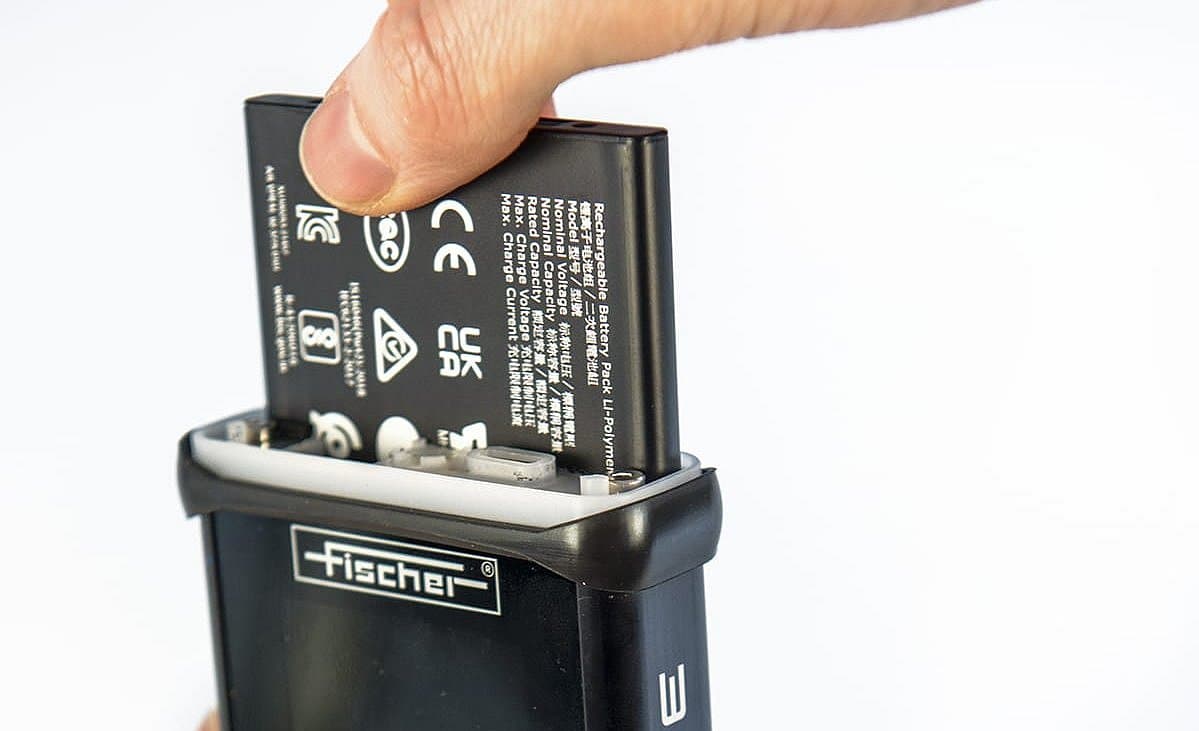

Replaceable Li-ion battery for > 24 h operating time
Digital probes available for a wide range of applications, analog probes backwards compatible thanks to F-adapter
Measuring range: 0.1 - 80% Fe or 0.1 - 110 FN
Measured value memory: 250,000 in 2,500 applications
Automatic device detection and easy data transfer via USB-C and Bluetooth
Robust aluminum housing with protection class IP64

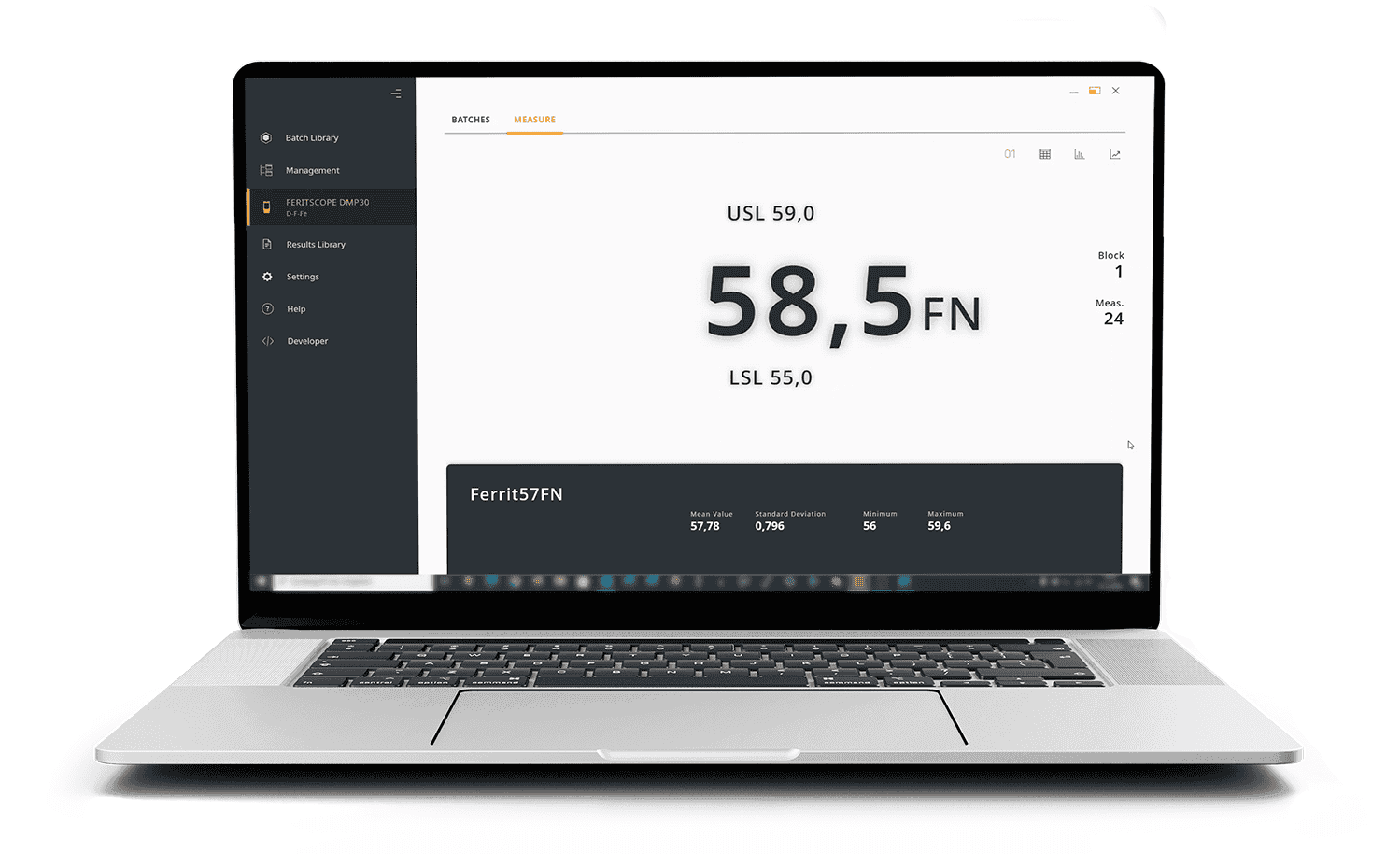

Most powerful software in tactile coating thickness measurement: FISIQ® T
Measuring method: Magnetic inductive
Limit value monitoring via light, sound and vibration
Do you have other applications? Then contact us!
Features
- Replaceable Li-ion battery for > 24 h operating time
- Digital probes available for a wide range of applications, analog probes backwards compatible thanks to F-adapter
- Measuring range: 0.1 - 80% Fe or 0.1 - 110 FN
- Measured value memory: 250,000 in 2,500 applications
- Automatic device detection and easy data transfer via USB-C and Bluetooth
- Robust aluminum housing with protection class IP64
- Most powerful software in tactile coating thickness measurement: FISIQ® T
- Measuring method: Magnetic inductive
- Limit value monitoring via light, sound and vibration
- Robust and durable thanks to all-aluminum housing and IP64
- Limit value monitoring via light, sound and vibration
- Rechargeable and exchangeable battery
- Determining the delta ferrite content in austenitic and duplex steels
- Determining the proportion of deformation martensite in austenitic materials
- Detecting weld seams in polished surfaces

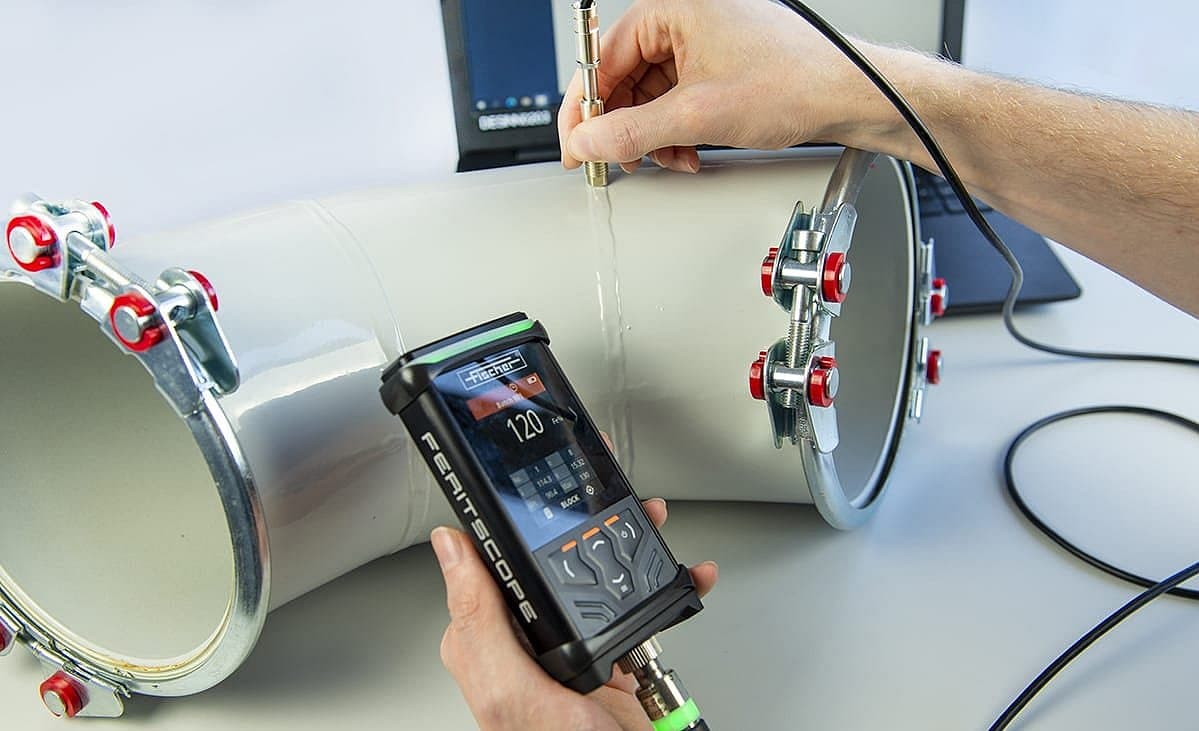

- Determining the ferrite content distribution along a weld seam
