FISCHERSCOPE® X-RAY 4000 series
Inline measuring with maximum endurance.
Robust inline XRF instruments for measuring on solid strips, punched grids or coated membranes during the production process.
Key Benefits
- Inline measurement in real time.: Precise and fast measurement in your shift operation
- Automatable.: Approach measuring points precisely and change measuring task at the same time
- Intelligent self-monitoring.: Automatable regular calibration and measuring equipment monitoring
- Tailor-made.: Individually adaptable to your application
Description
Robust inline device for measuring on solid strips, punched grids with measuring structures from a few millimeters up to coated membranes or solid strips up to one meter wide.
¹ Significantly improved standard deviation and thus gauge capability or significantly reduced measurement time compared DPP to DPP+.
The FISCHERSCOPE® X-RAY 4000 series is designed for continuous and non-destructive analysis and measuring of coatings and coating systems in your electroplating business. Inline measuring not only saves you time, but also money through an optimal use of coating materials. The powerful, high-resolution detector, in combination with the DPP+, ensures maximum precision and short measuring times, giving you the necessary safety.

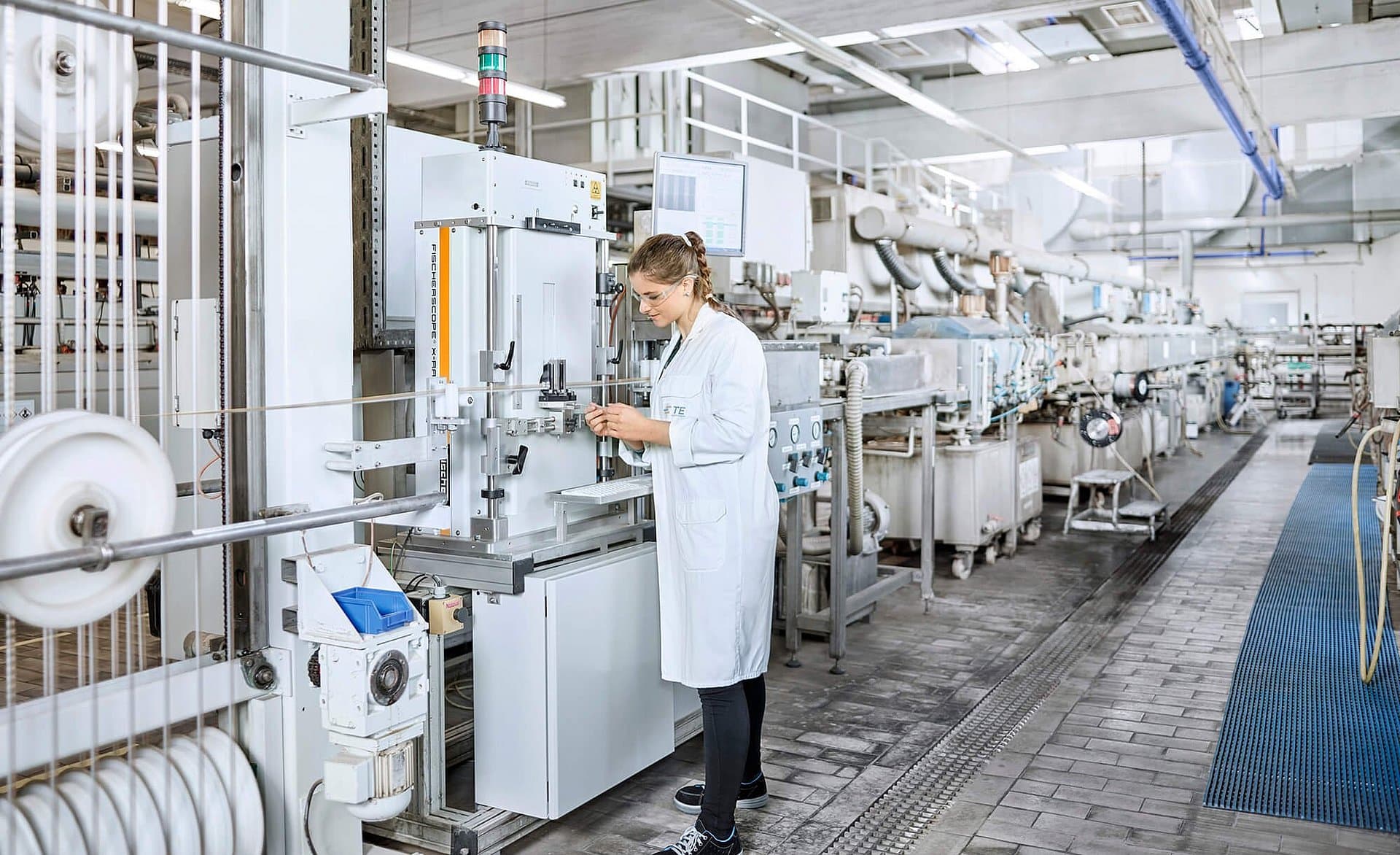

The automation solution is available as a pre-engineered solution. Benefit from an existing hardware and software design. Together we modify and adapt the automation device according to your requirements. It can be used freestanding or integrated modularly into your existing or upcoming production line.
Precise and fast measurement in your shift operation
Approach measuring points precisely and change measuring task at the same time
Automatable regular calibration and measuring equipment monitoring
Individually adaptable to your application

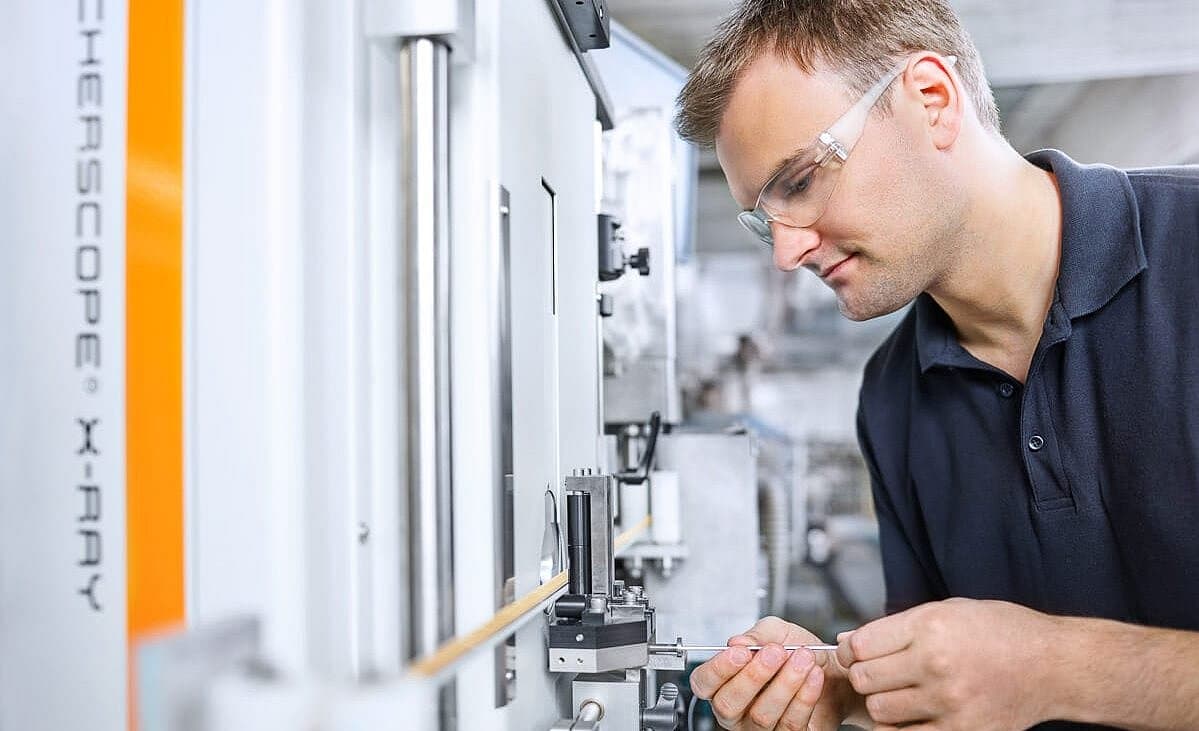

Strip for adjustment and operating panel easily accessible
Positioning axis and measuring head in one unit
Shorter measuring times or improvement of standard deviation*
*compared to the DPP
Microfocus tube with tungsten anode; molybdenum anode optional
Hardware and software tailored to your application
Horizontal or vertical installation position
Higher count rates and significantly reduced measurement times thanks to DPP+
2-fold or 4-fold changeable apertures
6-fold changeable filter

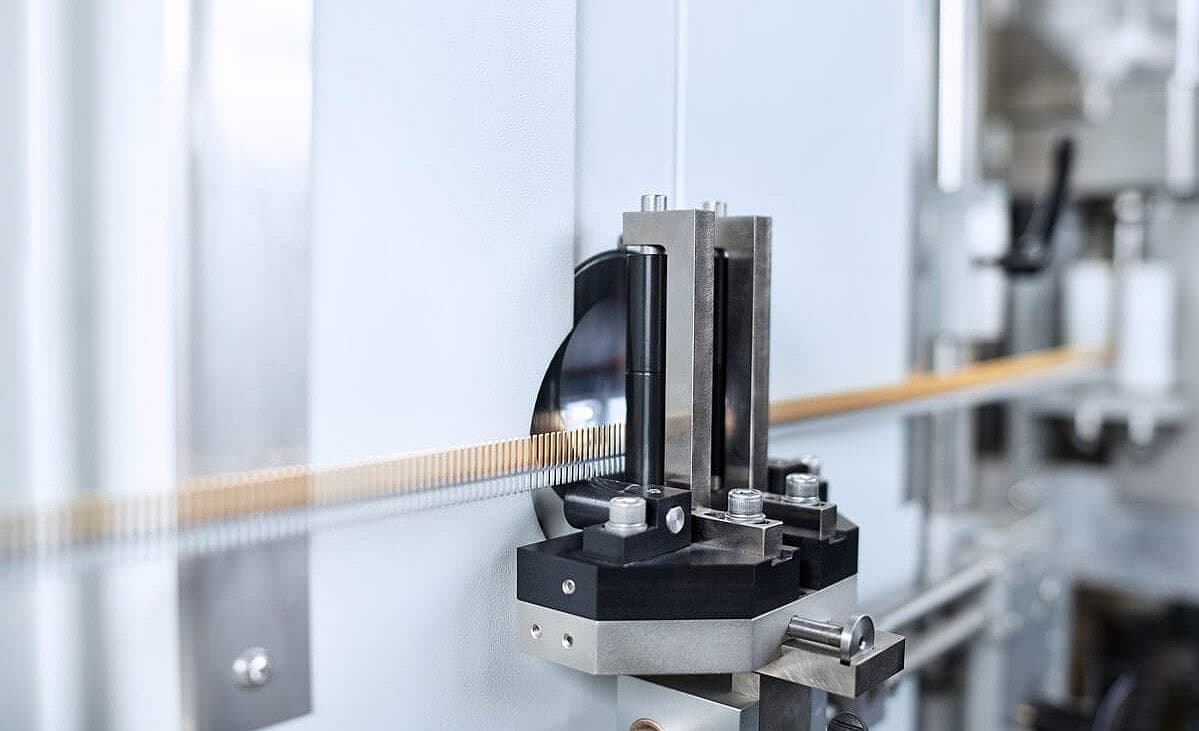

Silicon drift detector 50 mm² for highest precision

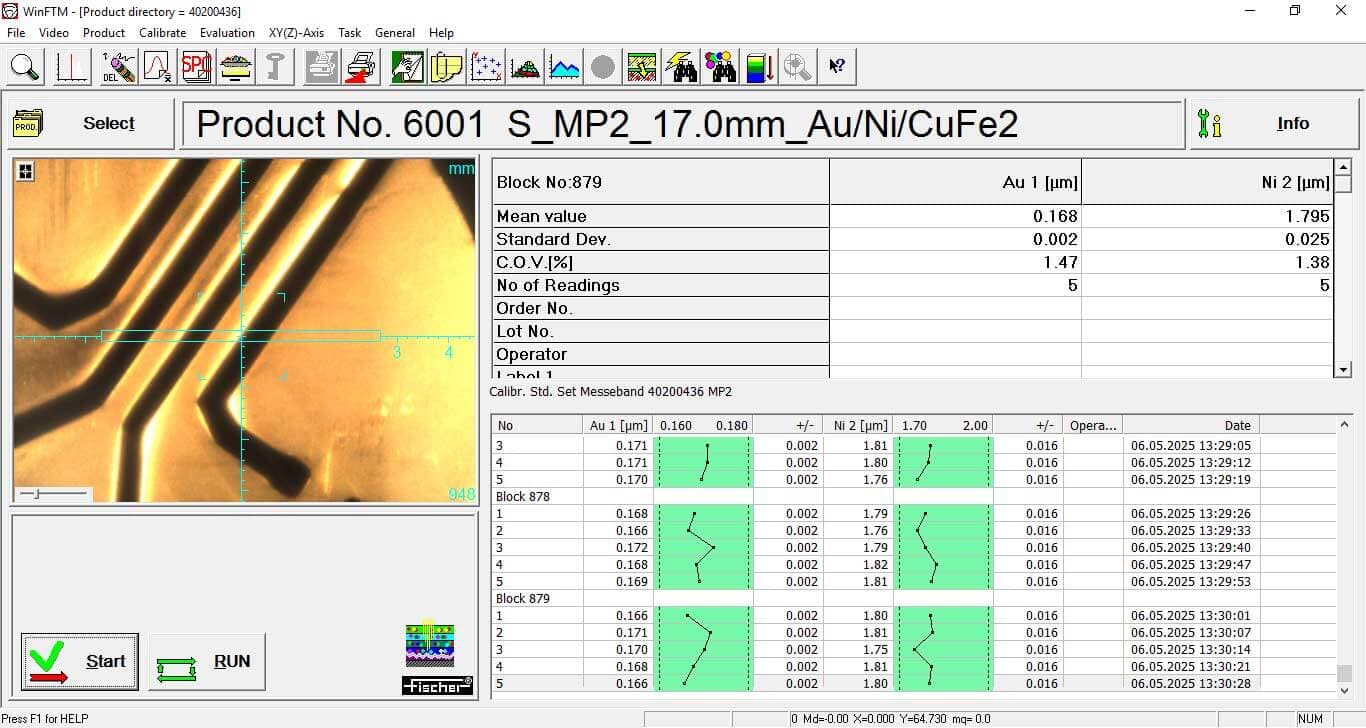

Remote control and data export via TCP/IP interface
Do you have further applications? Then contact us!
Features
- Microfocus tube with tungsten anode; molybdenum anode optional
- Hardware and software tailored to your application
- Horizontal or vertical installation position
- Higher count rates and significantly reduced measurement times thanks to DPP+
- 2-fold or 4-fold changeable apertures
- 6-fold changeable filter
- Silicon drift detector 50 mm² for highest precision
- Remote control and data export via TCP/IP interface
- Up to 50% ¹ increased performance thanks to DPP+
- Only device on the market that punching grids
- Quick changeover between different bands
- Analysis and measuring of coatings and layer systems in manufacturing processes
- Measuring of electroplated layers on solid and stamped strips, also with formed and embossed contact surfaces
- Measuring electrical contacts on strip material
- Measuring of platinum or other precious metals on membranes for fuel cells
- Monitoring of hot air solder-leveled steel and non-ferrous metal coils
- Measuring functional layers in the solar industry
