FISCHERSCOPE® MMS® Automation

Universal measuring system for automated coating thickness measurement and material testing.

Due to its modular design, the FISCHERSCOPE® MMS® Automation is designed for maximum flexibility: It can be equipped with different modules and probes to reliably and precisely solve a variety of measuring tasks with different measuring methods.

The FISCHERSCOPE® MMS® Automation is available as a pre-engineered solution, so you benefit from an existing hardware and software design. Together, we modify and adapt our automation device to fit your unique requirements.

Proven Fischer measurement technology as automated solution

Simultaneous measurement with up to four probes of the same type in one application

Drag chain capable cables up to 30 m length

Standardized PROFINET connection to your PLC

Flexible and modularly scalable, a suitable solution for every application

Thanks to simple top-hat rail mounting

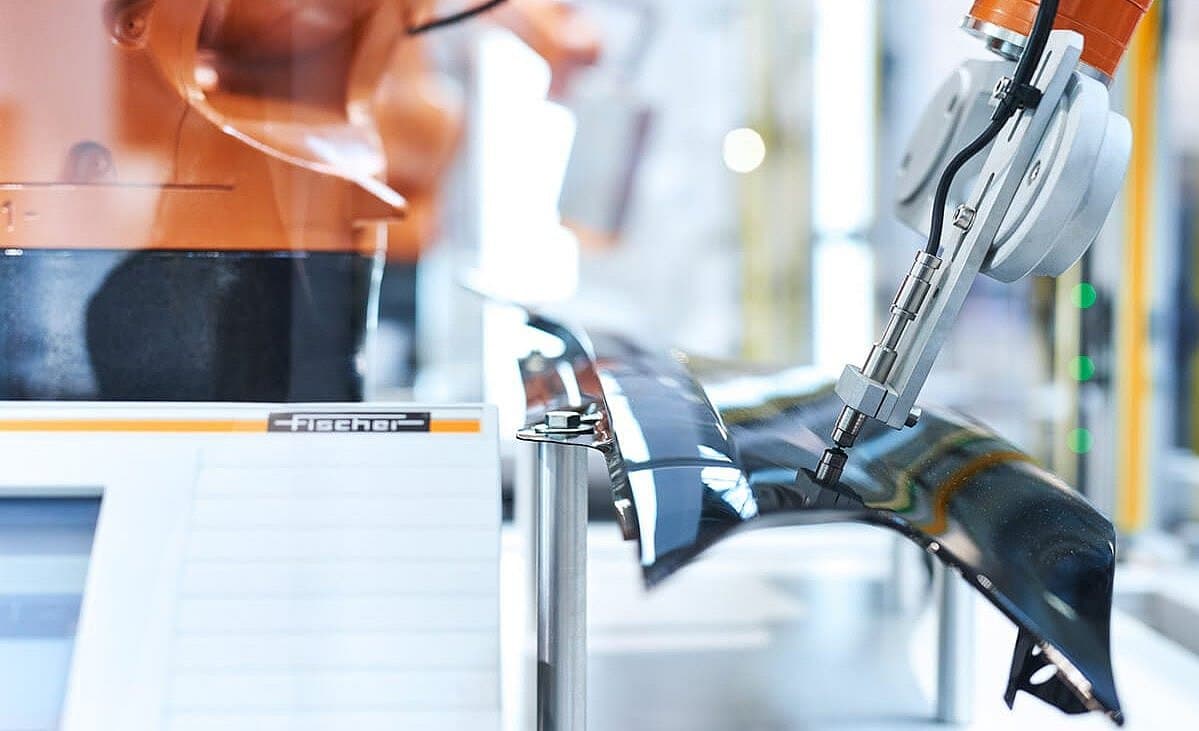

The modular measuring system consists of three parts: The measured values are acquired via probes that are mounted on an automated measuring stand or a robot arm. A digitizing unit - the MMS® module – then sends signals to the basic unit. The basic unit is mounted in the control cabinet and is responsible for monitoring. It communicates with higher-level units via an RS232 interface.

With its modular design, the FISCHERSCOPE® MMS® Automation can be specially adapted to your needs and expanded at any time. For example, you can equip the system with up to four different modules and probes to solve a variety of measuring tasks. Alternatively, up to four identical probes can be used in a single application to achieve a large number of measuring points.

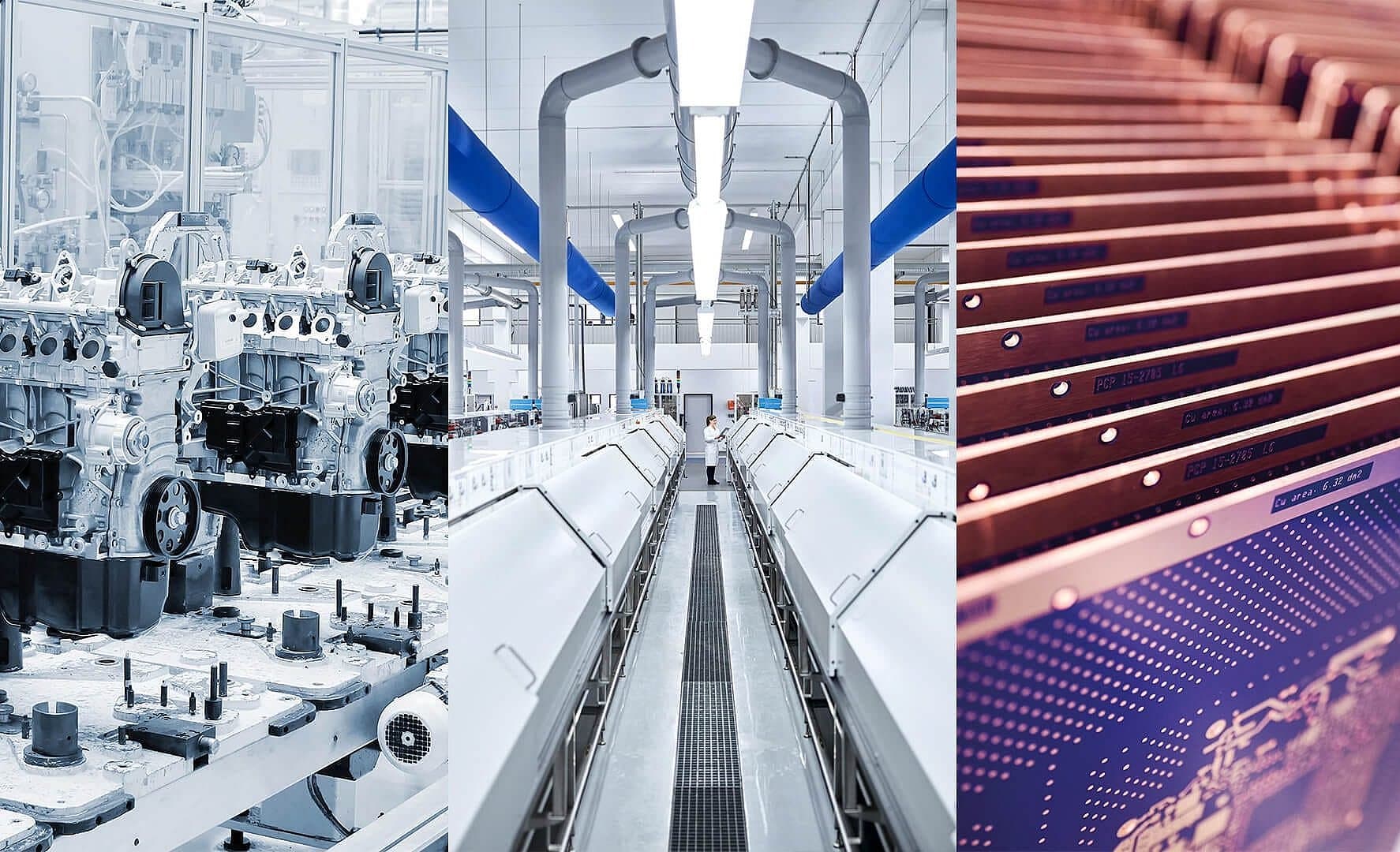

Thanks to standardized interfaces such as ProfiNET and RS232, it can be quickly integrated into quality management systems and automated manufacturing processes where precise coating thickness measurement and material testing is a priority. Regardless of whether you want to inspect with just one probe on the head of an industrial robot or work with up to four probes in parallel in a measuring station directly in your production line, the FISCHERSCOPE® MMS® Automation is an ideal solution.

Measuring method: Magnetic inductive, amplitude sensitive and phase sensitive eddy current, microresistivity.

Measured value memory: 1,000,000 in 1,000 applications

Measuring range: Depends on the combination of coating and base material and the probe used

Multi-channel measurement of up to four identical probes

Modules for coating thickness measurement: NICKELSCOPE®, PERMASCOPE®, PHASCOPE® DUPLEX, SR-SCOPE®

Modules for material testing: PERMASCOPE® (ferrite content), SIGMASCOPE® (electrical conductivity)

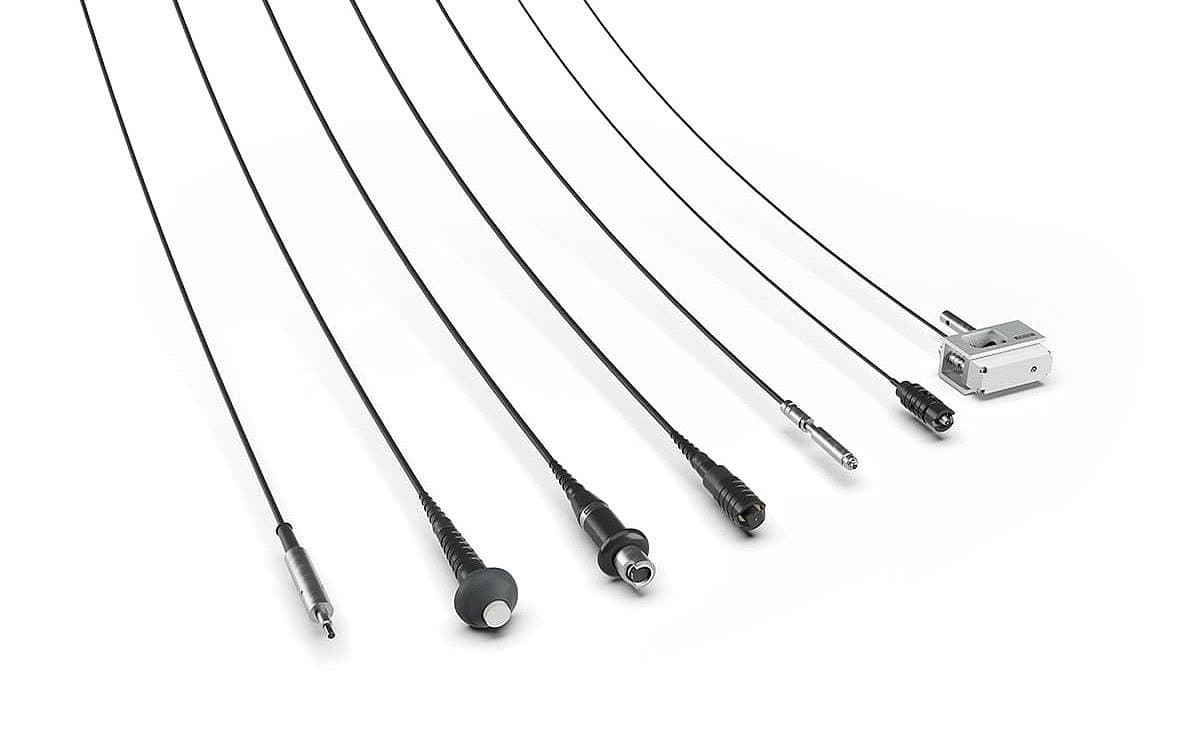

Probes available for various applications

Various interfaces for process control

Remote controllable by PLC control

Coating thickness measurement of almost all coating materials on metals

Do you have further applications? Then contact us!

Coating thickness measurement with magnetic inductive and eddy current methods.

Typical applications:

Measuring of duplex coatings with magnetic inductive measuring method as well as amplitude sensitive and phase sensitive eddy current method.

Typical applications:

Coating thickness measurement with electrical conductivity.

Typical applications:

Coating thickness measurement with micro resistance method.

Application:

Coating thickness measurement with magnetic measuring methods.

Typical applications:

Coating thickness measurement with magnetic inductive and eddy current methods.

Typical applications:

Measuring of duplex coatings with magnetic inductive measuring method as well as amplitude sensitive and phase sensitive eddy current method.

Typical applications:

Coating thickness measurement with electrical conductivity.

Typical applications:

Coating thickness measurement with micro resistance method.

Application:

Coating thickness measurement with magnetic measuring methods.

Typical applications:
