PICODENTOR® HM500

Automated hardness tester for particularly fine instrumented indentation testing and dynamic mechanical analysis.

Availability depending on region and country.

The PICODENTOR® HM500 combines high-end technology with easy handling. The hardness tester is designed for particularly fine instrumental indentation testing and dynamic mechanical analysis. It allows the depth-dependent determination of material quantities such as Martens or Vickers hardness and the elastic indentation modulus - and does so absolutely reliably and precisely. The measuring system impresses with a programmable measuring table, a high-intensity microscope and reduces the influence of external influences thanks to its clever design.

Automatic lens detection and motorized Z-axis with autofocus

Serial inspections thanks to automated specimen stage and powerful microscope

Intuitive operation with WIN-HCU® software

Measuring head suitable for highest requirements and very soft materials

Fast measuring without time-consuming sample preparation; ideal for laboratory and production control

High sample throughput possible

Determining plastic and elastic properties such as Vickers hardness, elastic indentation modulus and creep behavior

Measuring and calculation of parameters according to DIN EN ISO 14577 and ASTM E 2546

High quality microscope at scientific level, AFM update

Testing of solid materials and coatings in the nm range, test force range 0.005 - 500 mN

Temperature-stable and vibration-resistant: Possible measurements without external influences

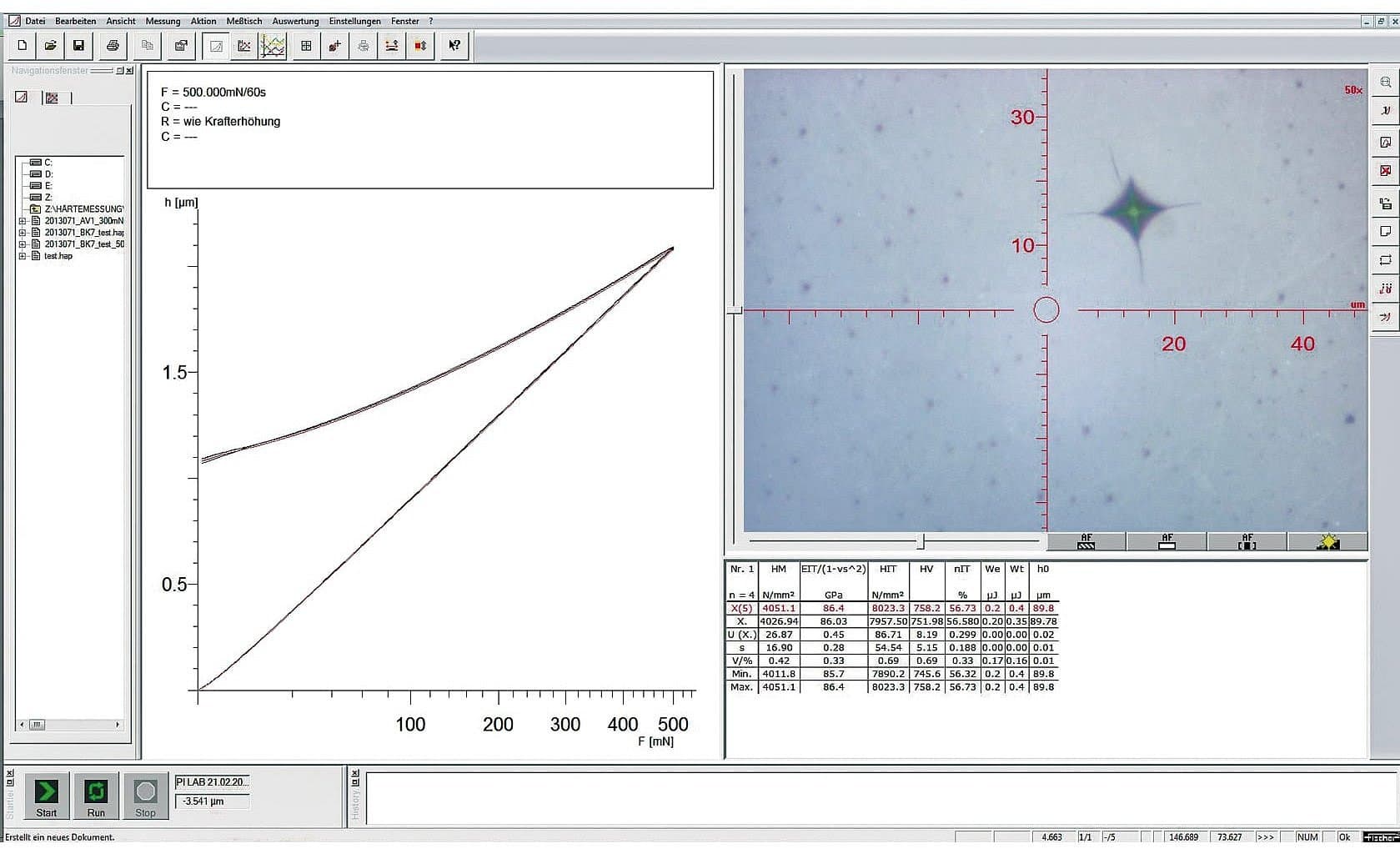

Powerful WIN-HCU® software for intuitive operation and evaluation

Indentor shapes: Vickers, Berkovich, carbide ball as well as custom indentors on request

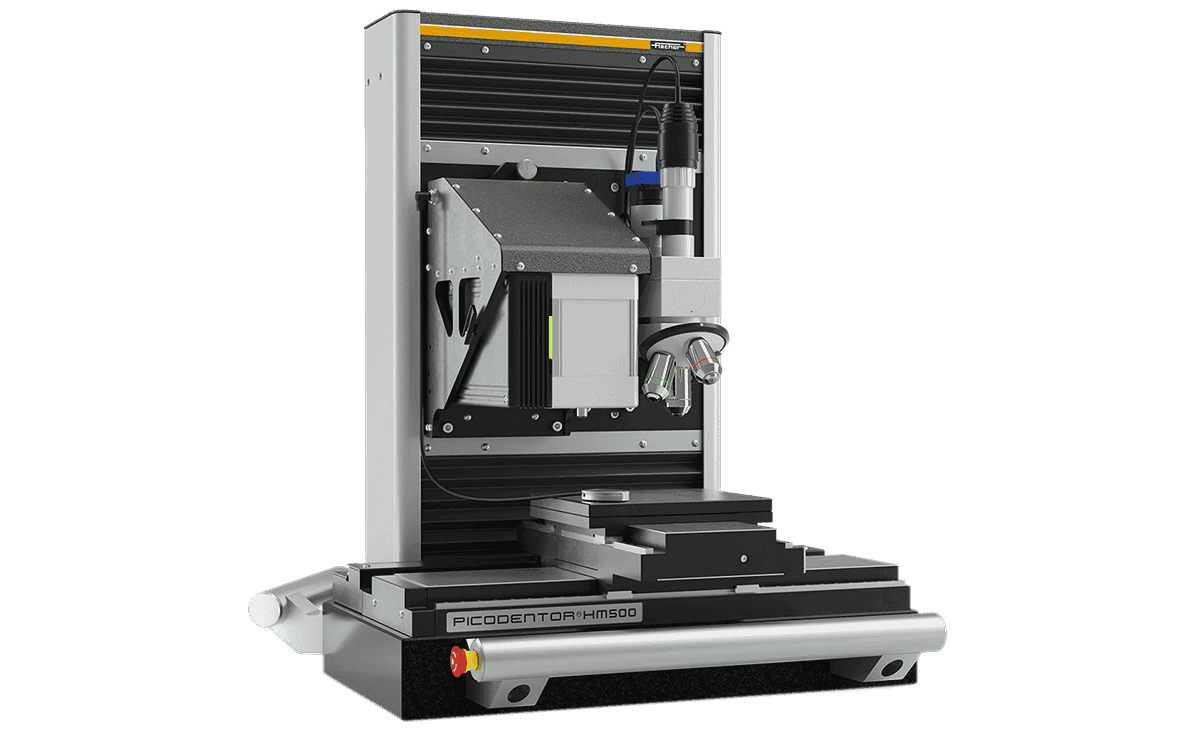

Programmable, high-precision measuring table for automated measurements

Possible sample height: Up to 13 cm

Do you have further applications? Then contact us!
