MFM - BO
151 MFM – B

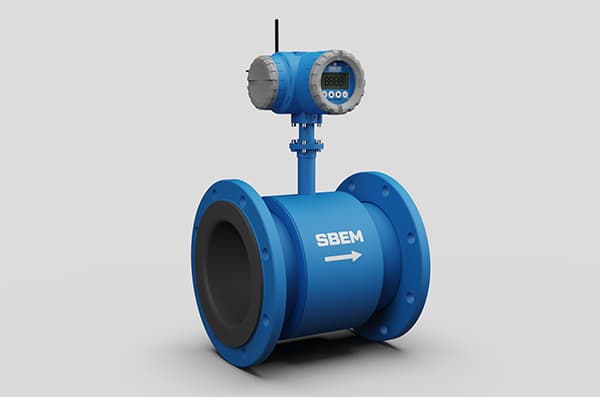

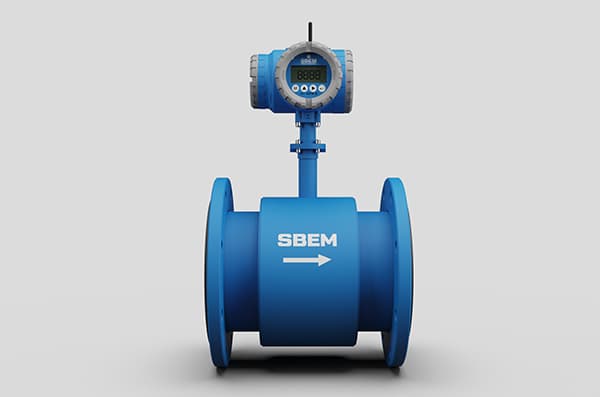

The 151 MFM-B battery-operated Electromagnetic Flow Meter by SBEM offers exceptional portability and versatility for remote or off-grid applications, making it suitable for industries such as mining, agriculture, and water management worldwide.
Description
The 151 MFM-B battery-operated Electromagnetic Flow Meter by SBEM offers exceptional portability and versatility for remote or off-grid applications, making it suitable for industries such as mining, agriculture, and water management worldwide. With nominal diameters ranging from 15 to 1000 mm and an accuracy of ±0.5%, this model uses premium electrode materials, including SS316 and Titanium, accommodating liquids with conductivity above 50 μS/cm. It features a graphical LCD, alarm indications for sensor faults and empty pipes, and optional communication via RS485 and GSM/GPRS for seamless remote monitoring. Powered by a 3.6V battery pack, the 151 MFM-B combines precision with durability, supporting harsh environmental conditions with IP67/IP68 protection, catering to the global demand for reliable, low-maintenance flow measurement solutions.
Features
- Maximum Range (Velocity): 15 m/s.
- Meter Sizes: 15 to 600 mm.
- Process Connection: Flange [ANSI/AWWA/DIN].
- Electrode Material: SS/Hastalloy C/Tantalum/Titanium.
- Lining: Rubber/Neoprene/Hard Rubber/PTFE/Polyurethane.
- Measuring Tube Material: SS304/SS316.
- Coil Housing Material: CS/SS304/SS316.

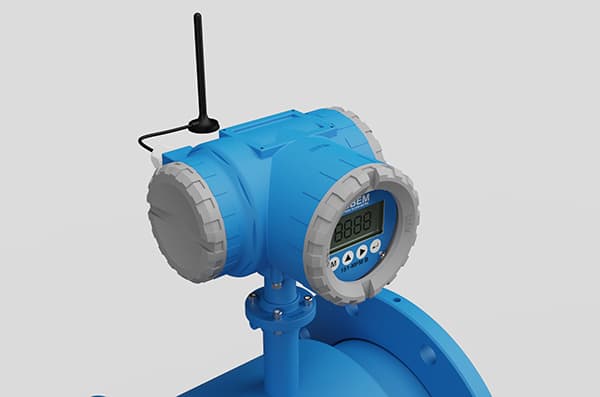

- Graphical LCD display.
- Integral & Remote versions.
- Bidirectional Flow Measurement.
- Built In Self Diagnosis Feature.
- Empty Pipe Detection.
- Protection Class: Sensors – IP 67 [std] / IP 68 [For remote versions only], Indicator-Converter – IP 67
- Optional Earthing Rings.
- Low Power Consumption.
- Optional Pressure Measurement.
