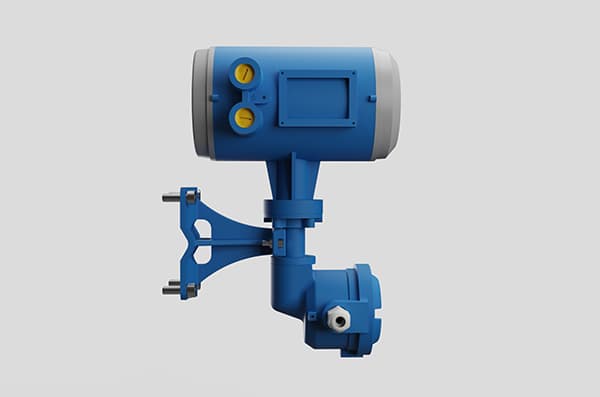

151 MFM-P (Hygenic)
151 MFM – P
SBEM’s 151 MFM-P Electromagnetic Flow Meter represents the pinnacle of flow measurement technology with ±0.
Description
SBEM’s 151 MFM-P Electromagnetic Flow Meter represents the pinnacle of flow measurement technology with ±0.3% accuracy and ±0.1% repeatability, ideal for critical industrial processes worldwide. This model supports a wide range of nominal diameters (15 to 3000 mm) and velocities up to 15 m/s, designed for seamless integration with flanged or wafer-type connections. It features a robust sensor housing with IP67/IP68 protection and selectable lining materials including PTFE and neoprene for compatibility with aggressive liquids. The graphical backlit LCD with multi-parameter display, along with versatile outputs such as 4-20 mA, MODBUS RTU, HART, and optional data logging, provides comprehensive process monitoring and control. Engineered for applications in water management, chemical processing, and heavy industries, the 151 MFM-P enhances operational accuracy and global process automation efficiency.
Features
- Maximum Range (Velocity): 15 m/s.
- Meter Sizes: 15 to 2000 mm.
- Process Connection: Flange [ANSI/AWWA/DIN] & Wafer.
- Electrode Material: SS/Hastalloy C/Tantalum/Titanium.
- Lining: Rubber/Neoprene/Hard Rubber/PTFE/Polyurethane.
- Measuring Tube Material: SS304/SS316.
- Coil Housing Material: CS/SS304/SS316.
- Graphical LCD display.
- Integral & Remote versions.
- Bidirectional Flow Measurement.
- Built In Self Diagnosis Feature.
- Empty Pipe Detection.
- Weights & Measures approval.
- Protection Class: Sensors – IP 67 [std] / IP 68 [For remote versions only], Indicator-Converter – IP 67
- Interchangeable Converter.
- Optional Earthing Rings.
- Low Power Consumption.
