104 LOH

Industrial InstrumentationLevel

Description

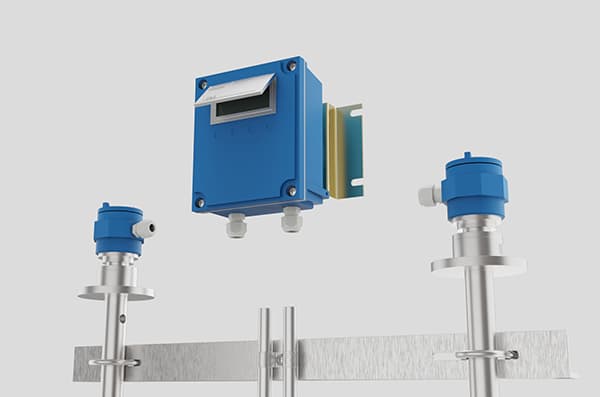

SBEM’s Loss of Head Indicator-Transmitter 104-LOH is a reliable and efficient solution, designed for accurate differential head loss measurement in gravity filter beds, particularly in water treatment plants worldwide. Engineered with SBEM’s field-proven capacitance probe technology and powered by microprocessor-based electronics, the 104-LOH ensures consistent performance with minimal maintenance. It features a two-wire, loop-powered 4–20 mA transmitter, dual probes for high and low pressure points, and a user-friendly six-digit display with scalable output in mm or cm. Designed for ease of use, it requires only a zero and span setting—no full calibration needed onsite. Its robust weatherproof IP65 aluminium enclosure, PTFE-wrapped SS electrodes, and optional remote indicator enhance versatility in diverse environmental conditions. With high accuracy of ±2% of the electrode length, built-in surge protection, and full accessory support including stilling wells, valves, and mounting brackets, the 104-LOH is a complete, globally adaptable level control solution for efficient water management systems.

Features

Low cost solution.
04-20 mA Two wire transmitter.
No calibration at site except for Zero & span setting.
Arrangement for recalibration if required.
Alarm on Loss Of Head using Optional Indicator (96X96).
Quick and easy installation.
Self diagnostic function: Error messages on display.
SCALABLE USER FRIENDLY DISPLAY: 6 Digit LCD, easy to read, with adjustable Decimal point to give direct loss of head in mm or cm.
ACCURACY: The overall system accuracy is better than ±2% of the Electrode Length.
PROTECTION : All entries are protected through Password in EEPROM.
Maintenance Free.
All accessories supplied.
Provision of a nozzle to clean the probe without dismantling the Probe.

Specifications

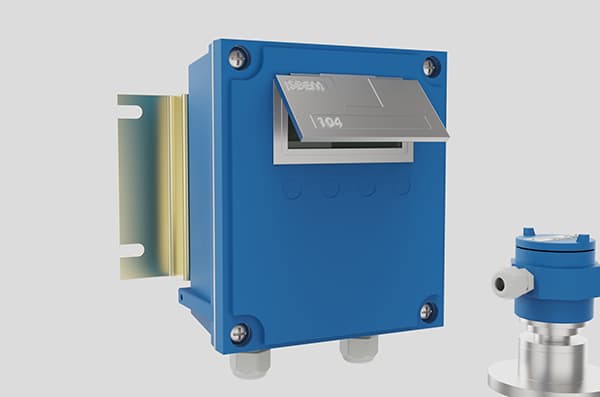

Transmitter Unit

Enclosure: Weatherproof IP 65, Cast Aluminium polyurethane painted Display Type: 6-Digit LCD Display Display Range: 0-9999 mm with adjustable Decimal Point (std. 0-100%) Calibration: Possible through front panel key Pad Accuracy: ±2% of Electrode length Temperature: 60°C (Max.) Pressure: Atmospheric Output Current: 4-20 mA DC proportional to Loss of Head Surge Protection: In Built Supply: 24 VDC ± 10% Mounting: Wall or Pipe mounting Cable Entry: %,” UNF(F) (2 No.)

Probe Unit

Number of Electrodes: Two identical electrodes, one each for High & Low pressure Temperature: 60°C (Max.) Pressure: Atmospheric Electrode Material: PTFE Wrapped SS cable Outer Pipe (Still well): SS304 Maximum Length: 2700 mm (Std.), 0-4000 mm (Optional) Cable Entries: 3/4″ UNF(F) Enclosure: Weatherproof IP65, Cast Aluminium polyurethane painted Cable between Probe and Indicator: 5 CoreX 1.5 Sq.mm. shielded cable with Max. distance between probe and indicator 100Mtr

Accessories

Valves with Nipples: 5 Nos, Brass Indicating Tube: Suitable PVC tube Mounting Bracket: CS angle Glands: PVC, PG11, Weatherproof
