SBEM
138 W52
AquaWave 138 W52

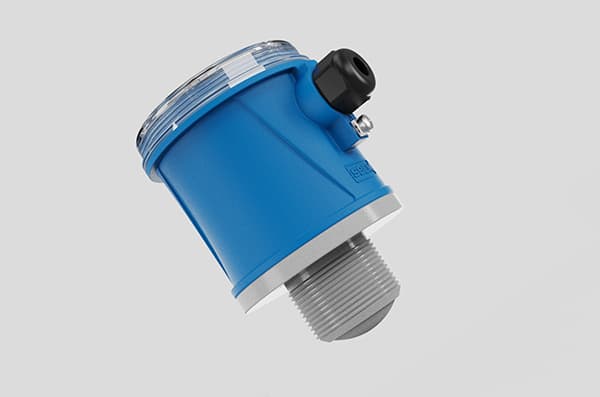

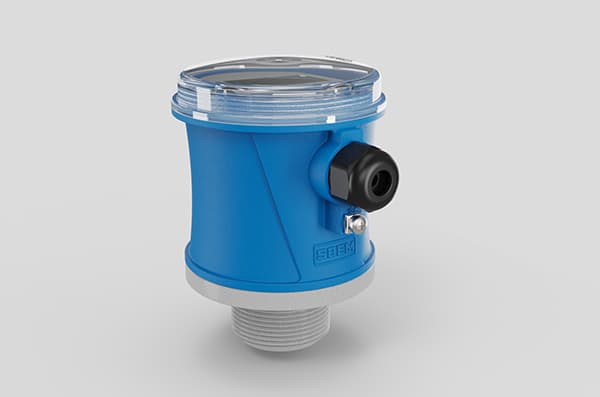

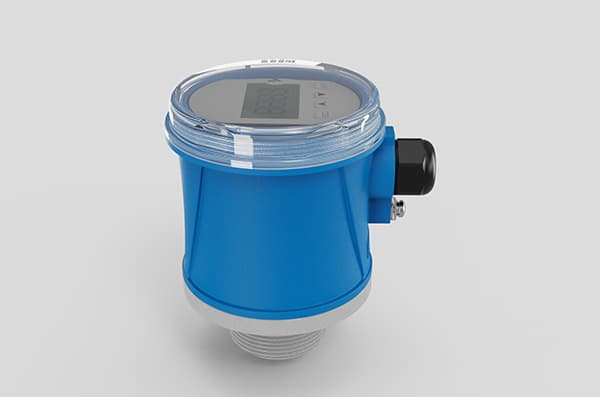

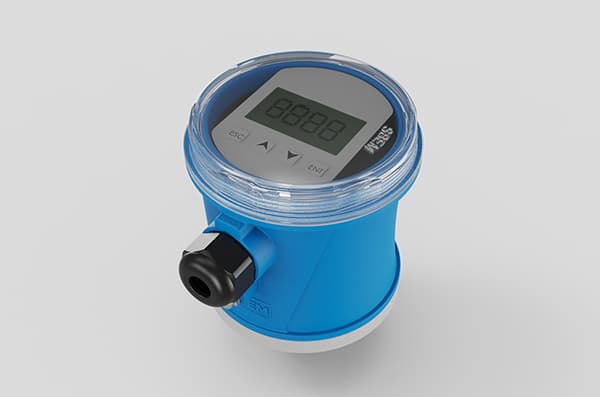

The 138 W52 Radar Level Transmitter is a highly reliable, user-friendly non-contact sensor designed for accurate level measurement.
Industrial InstrumentationLevel
Description
The 138 W52 Radar Level Transmitter is a highly reliable, user-friendly non-contact sensor designed for accurate level measurement. Using advanced 80 GHz radar technology, it provides consistent performance regardless of the liquid or solid being measured, as well as the surrounding environment. With an accuracy of ±5mm and an 8° beam angle, it operates within a temperature range of 0°C to 60°C. This two-wire transmitter offers a 4-20mA + HART output for seamless integration into your system.
Features
- 80 GHz technology for reliable and maintenance-free operation
- Rugged PVDF antenna and enclosure for corrosive liquid.
- IP68 rated sensor for harsh outdoor or below grade installations
- Measures level & Distance.
- Minimum dead band maximizes the potential fill capacity of small tanks
- Configuration via HART Server.
