103 CLT
103 CLT – Conductive
The 103 CLT Capacitance-based Microcontroller Level Indicator Transmitter is designed for continuous level measurement in various applications.
Description

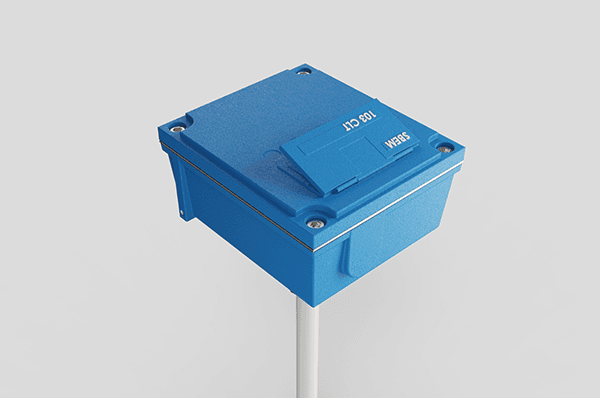

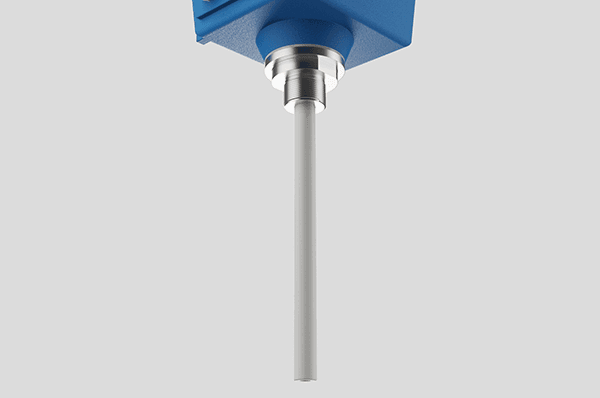

The 103 CLT Capacitance-based Microcontroller Level Indicator Transmitter is designed for continuous level measurement in various applications. It works with non-fuming conductive liquids with low to medium viscosity, such as water and water-based solutions, as well as non-conductive liquids like mineral oils, turbine oils, and cooling oils (for non-conductive liquids, refer to leaflet LF-103-0804 R06). The 103 CLT is available in two configurations: an integral system, where the transducer circuit, amplifier, and transmitter are mounted on the electrode, and a remote system, where the transducer circuit is mounted separately on the tank, and the transmitter is wall or pipe mounted.
Features
- Microcontroller Based System.
- 2-WireTransmitter.
- Level to Volume conversion with strap.
- Wide range electrodes to suit various duties.
- Calibrations and Programming without opening the transmitter through removable keypad.
- On site calibration. Calibration methods from 2 point to multi-point calibration(upto 10 point).
- Easy to install.
