FISIQ® Z
The algorithmic heart of TERASCOPE®.
The highly efficient and smart software solution for your quality control with the TERASCOPE®.
Key Benefits
- Powerful and reliable.: Efficiently performs all calculations in the background
- Intuitive.: User-friendly interface allows easy control of the entire measurement system
- Resource-saving energy management.: Definition of the operating hours and off times of the measurement system via the planning mode
- Graphic display of measured values.: Detailed visualization of the measurement results and each single layer
Description
The highly efficient and smart software solution for your quality control with terahertz waves.
Availability depending on region and country.

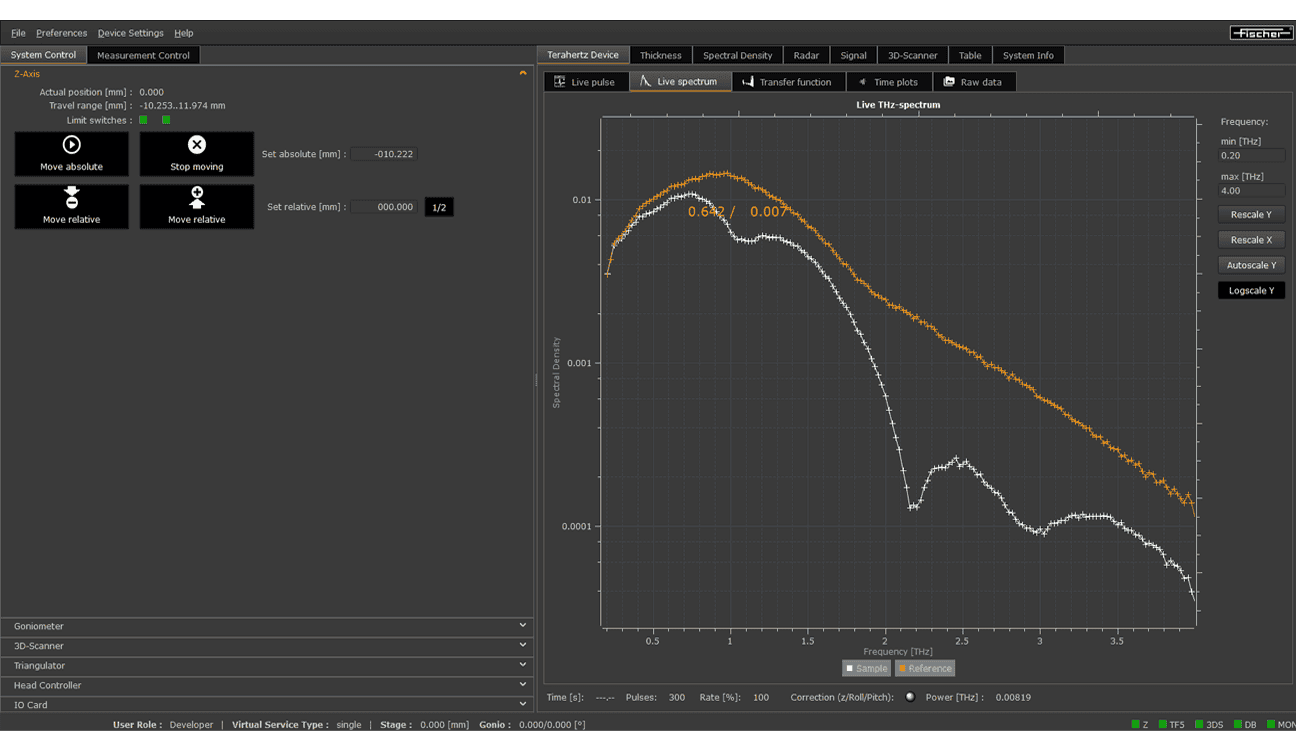

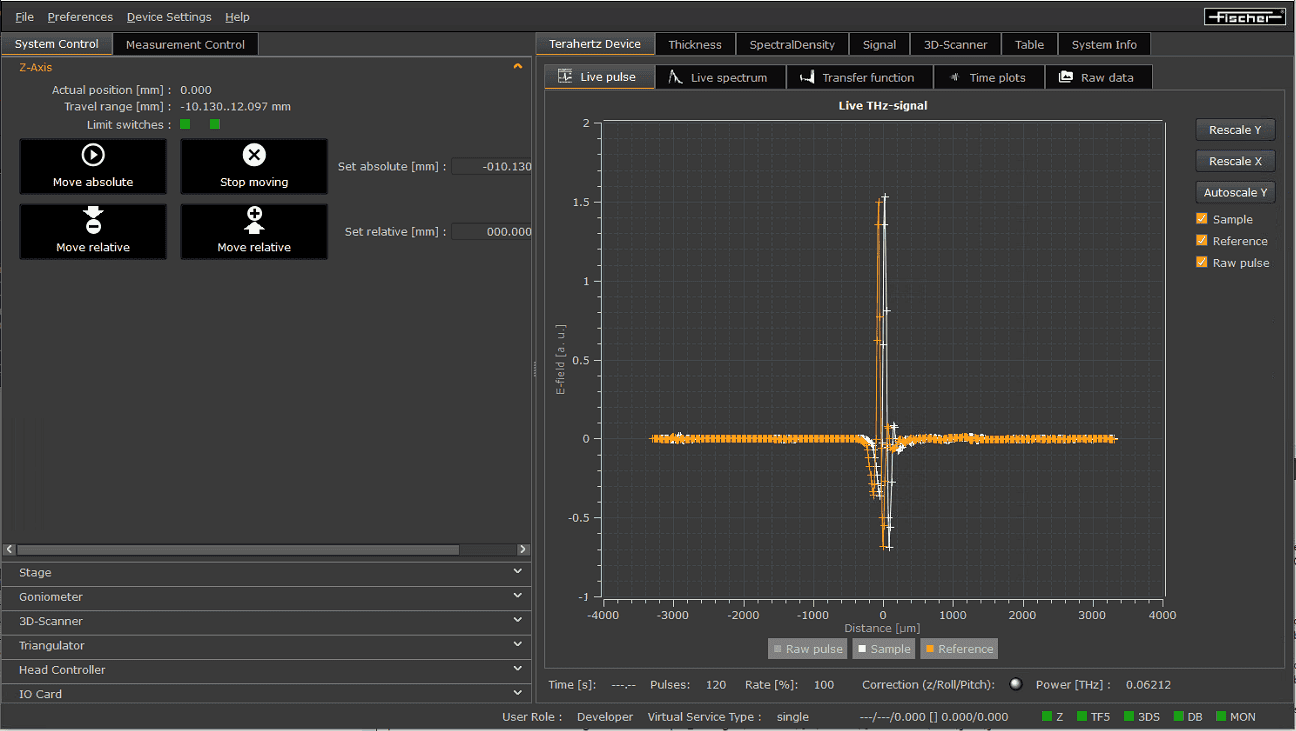

Raw data in real time, quick modeling of the frequency spectrum, your measurement results at a glance – evaluating and exporting your measurement data has never been so efficient and convenient. Find out what intuitive handling with just a few clicks and full data control means.
Efficiently performs all calculations in the background
User-friendly interface allows easy control of the entire measurement system
Definition of the operating hours and off times of the measurement system via the planning mode
Detailed visualization of the measurement results and each single layer
Compatible with TCP/IP or PROFINET, remote control via your process control system
Export of measurement results to all common data evaluation, statistic, and reporting programs
All measurement data processed or as a complete raw data stream
The function for determining radar transmission and reflection can be purchased as an additional software package
These and many other features make FISIQ® Z the powerful software for your quality control:
FISIQ® Z enables the programming and fully automatic execution of recurring measuring sequences. Complex measuring processes in particular can be carried out easily and reliably as continuous inline measurements.
Define when your TERASCOPE® should be ready for operation with just a few clicks: With the FISIQ® Z, you can regulate the operating hours and off periods of the measurement system and coordinate them optimally with your production process and shift planning.
Use the FISIQ® Z to define specific time intervals at which the TERASCOPE® should reference itself regularly and fully automatically. We therefore offer you the optimum software solution for uninterrupted 24/7 use of the measuring system.

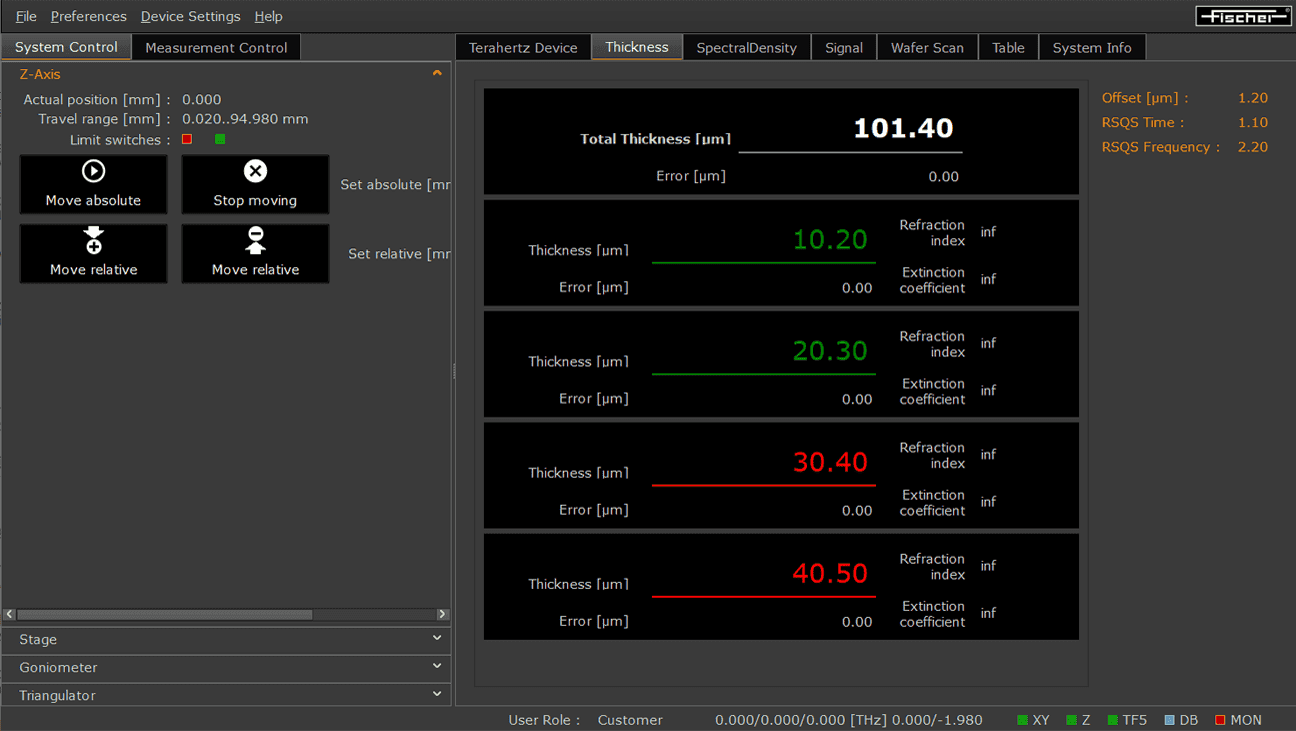

The FISIQ® Z enables a clear presentation of the measured values in tabular form. These can be transferred to all common statistics programs.
The function for determining radar transmission and reflection can be purchased as an additional software package. This allows the coating thickness and the attenuation of radar signals on painted add-on parts, such as bumpers, to be determined in just one measurement.
Testing of material properties
Testing of material properties
Features
- Fully automated measuring process
- Measurement data in real time
- Compatible with all common fieldbus systems
- Electrical conductivity
- Layer resistance
- Mobility of free charge carriers (2DEG)
- Density of charge carriers
- Refractive index and extinction coefficient
- Absorbed power
- Single frequency characteristics
