ecom-DP Engine

EXTREMELY balanced.

AnalyticalPressure Measurement

Description

EXTREMELY balanced.

Features

For pressure measurements at gas engines
Gas pressure control

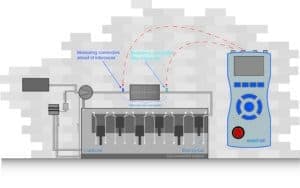

Differential pressure measurement at air intercoolers
Measurement of flue gas overpressure
Differential pressure measurement at blow-by-filters
Measurement of crankcase pressure
Suitable for pressure measurements at gas heatings / burners
Thermal printer as accessory
Min./Max. function (storage of lowest or highest value)
Freeze function (manual temporary storage of a specific measurement value)
Damping adjustable
Changeable parameter for specific tests
Data storage and data logging
EXTREMELY precise
EXTREMELY safe
EXTREMELY complete

Specifications

Features/ Delivery Scope

Measurement instrument with backlit graphic display, Power supply: 3 one-way batteries AA 1.5 V (Mignon), Dimensions (L x W x H): approx. 170 x 75 x 35 mm, Weight: approx. 300 g (with batteries), Free downloadable PC software „ecom-DP Logger“, Measurements and adjustments of engines, Gas pressure control (±80 hPa to 8 bar), Differential pressure measurements at air intercooler (±20 to 700 hPa), Measurement of flue gas overpressure (±5 to 120 hPa), Differential pressure measurements at blow-by-filters (5 to 50 hPa), Measurement of crankcase pressure (-5 to 100 HPa), Differential pressure measurements at gas heatings/gas burners (connection pressure, nozzle pressure, plant pressure and stand-by pressure) also possible

Features/ Delivery Scope (Notes)

Suitable for the Following Measurements:, Testing according to UKCA approved DIN EN 50379-2 and 1st. BImSchV., Data Sheet

Options (i.a.)

Pressure tests according to TRGI (upon request), Tightness check of gas valve at gas heatings/gas burners (upon request)

Accessories (i.a.)

Thermal printer (IR), Tube set - for operating pressures up to 1 bar (2 tubes - each 4 m length incl. quick- & screw coupling), Tube set - for operating pressures up to 10 bar (2 tubes - each 4 m length incl. quick- & screw couplings), Plastic transport case (different options – depending on scope of delivery)
